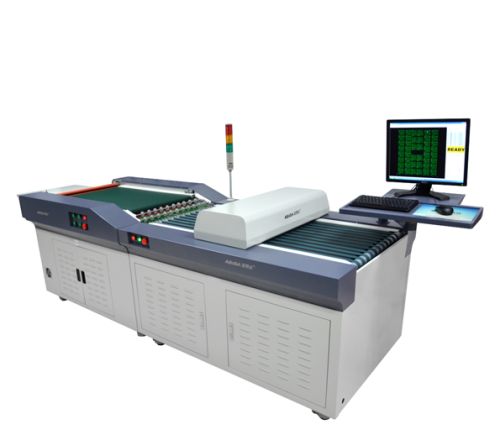

Hole Checker JK5200

Hole Checker JK5200 PCB Maufacturing Machines Usage The machines are suitable for steps after PCB drilling and before PCB packaging, detecting the number of holes, hole diameter and quality (such as plug hole, foreign bodies, trough long and short defects), and  make OK NG judgment automatically.   Features 1 Precise  Adopting high-precision CIS scanning system, automatic positioning, image processing and detection technologies. 2.Efficient： (a)Equipped with double sorting equipment, which can detect two plates at the same time. 3.Characteristics With network maintenance function, it can use several terminals  to view NG board defect information synchronously, and to overhaul the NG board rapidly. Parameters Specifications of Hole Checker Model JK5200 Accuracy Repeat Accuracy: ±30 µm   Measurement accuracy： ±20 µm（hole diameter≤1mm）; ±30 µm（1mm≤hole diameter≤4mm）; ±40 µm（4mm≤hole diameter）; Inspection Speed After drilling :3mmin、6.5mmin、8mmin; Final Inspection:6.5mmin、8mmin、10mmin、12.5mmin   Object Hole diameter: 0.10mm～10mm Size of Circuit Boards: 80mm×100mm～630×650mm Thickness Range of Circuit Board: 0.3mm～10mm Hole Margins: ≥0.10mm Dimensions (L×W×H) 3510mm x 1160mm x1100mm Weight About 800Kg
