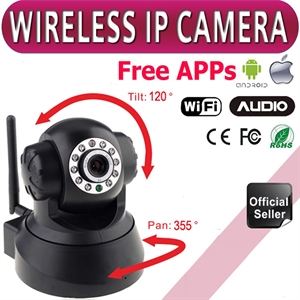

Contact SupplierWe are offering home ip camera.
Specifications
camera
image sensor
14 color cmos
lens
3.6mm
infrared led
10 pcs ø5
pixel
300,000
night vision distance
12m
awsagcaes exposure
auto
min. Illumination
0.1lux
audio
audio
2- way audio
input
built-in microphone
output
built-in speaker
video
image format
palntsc
compression
mjpeg
max. Frame rate
25 fps
resolution
640×480(vga), 320×240(qvga)
pantilt
pt angle
horizontal 270°; vertical 90°
level speed
0 - 16 °s
vertical speed
0 - 16 °s
network
wi-fi
ieee 802.11bg
network interface
rj-45 (10base-t100base-tx)
supporting protocols
tcpudpiparpicmpdhcpdnshttp
ftpsmtpntppppoeupnpddns
alarm
motion detection
one configurable zone
alarm events
• notification via email, ftp
• video recording to local storage
periodic sending
send pictures to emailftp within the provided time
general
user authentication
authentication: userpassword;
administratoroperatorgeneral user
web browsers
ie 6.0 or above version, mozilla firefox, safari, opera, chrome ,etc
simultaneous viewers
vga (640x480) resolution support 4 simultaneous viewers,
qvga (320x240) resolution support 10 simultaneous viewers
mobile view
support nokia, android, windows mobile phone, iphone and other smart mobile phones
power
dc 5v 2a
power consumption
4w6w (infrared onoff)
operating temperature
-10 to +55 °c
storage temperature
-20 to +60 °c
operating humidity
20- 80%rh
storage humidity
20- 95%rh
package dimension
215mm x135mm x185mm (l x w x h)
gross weight
620g ( accessories included)
certificates
ce; fcc; rohs
one set included
1 x wireless ip camera
1 x wi-fi antenna
1 x mounting bracket
1 x power adapter (us eu uk au plug)
1 x software cd
1 x user manual
standard factory package
