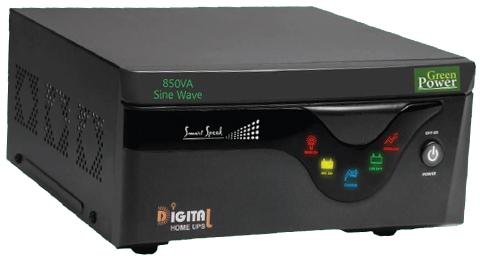

Home UPS, Packaging Type : Black

We offer home ups.
Fully digital micro controller based system.
Pic16f72n micro controller programmed.
State-of-art mosfet technology.
Crystal controlled pic micro controller circuit.
Flod back current limiting protection for short ckt surge load & over load.
Input dc range- 10.5 v ~ 14.4 v or 21v ~ 28.8v
efficiency (on battery mode): >86%
protection overload – 100%
short circuit- 300%
charging current – 5 amp to 13 amp
high frequency charging
input mains (nea generator) low or high voltage cut off protection in both: inverter (90-260) ups mode (180-245)
power factor correction
silent operation of fans, tube light or other appliances.
Indication – low battery shut down with beep
software controlled auto reset feature for overload and low battery.
Charging cut off.
Low voltage charging function.
Low maintenance cost.
Long backup.
Solar compatible.
Selectable low high charging mode.
Selectable inverter ups (for ultra fast switching) mode switch.
Stable output voltage 220vac +- 3%
automatic cooling system.
Thermal shutdown (in case of fan failure or high temperature).
