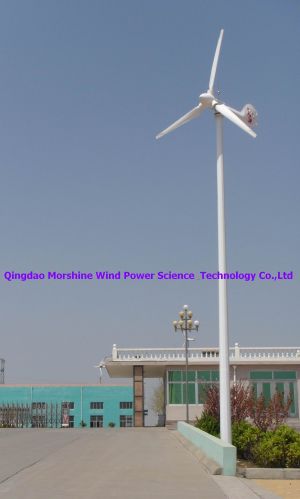

Home Use 5kw Wind Turbine Generator With Pitch Controlled

Horizontal axis 5KW wind turbine generator with variable pitch;
Introduction;
we're manufactory of wind turbine generator system.
The 5KW wind turbine generator system has been run smoothly more than 6 years for farm,villa power supply and so on. We mainly export to EU market,North America market,oceania market,Middle east market
1,Features:
1).High power efficiency: increase 10%-30% than traditional
2). Pitch controlled
3). Life span: the designed life span 20 years, can be used normally more than 25 years.
4). Maintenance free
5). Low start-up wind speed
6).CE certificate (CE NO. NO110726QMW513)and ISO9001:2008 quality management system
2,Technical parameter,
Rated power (W):5000
Max power (W):5500
Cut-in wind speed: 2.5 M/S
Rated wind speed: 9 M/S
Cut-out wind speed: 25 M/S
Survival wind speed: 45M/S
Operating wind speed: 2.5-25M/S
Rated rotating speed(RPM):240
Rated voltage (V): 220/560V AC
Inverter out-put voltage (V):120/220V
Frequency: 50/60Hz
Protect grade: IP54
Blades material : FRP
Blade diameter: 6.40M
Pitch system: Variable Pitch by Mechanical Centrifugal Force
Height of tower: 9M
Can supply power for: Refrigerators, Water pumps, Cookers, Color TV sets, Washing machines, Lighting, Electric fans, and Charge
Micro-computer intelligence controller
1.If the system meet problem ,and the wind turbine is running ,it can prevent the wind turbine race rotation .
2.have the auto-protection function of the batteries Reverse protection, anti-disconnect battery protection, battery damage protection.
3.when the charge current is high in strong wind,controller can load the wind turbine automatically. And charging the battery with low current.
4.The wind turbine brake automatically when the battery bank voltage get to rated voltage 125%; and stop charging the batteries.
5.the wind turbine get back charging the batteries when the the battery bank voltage get to rated voltage 108%
6.Controller with a manual emergency brake switch, users can use depending on the circumstances. Using this switch, the wind turbine will be brake.
Pure sine wave inverter
1. Pure sine wave output can drive any household appliances.
2. Use integrated circuit, less wire connection.
3. Adopting micro-processor technology, improving system integration.
4. Excellent protection includes over voltage shutdown, under voltage shutdown, over load protection, short circuit protection, over thermal protection, etc.
5. Be able to work in wind power or wind&solar hybrid system
6. With high efficiency transformer instead of high frequency e-circuit design
7. Automatic regulate voltage,
8. LCD display operation status,
9. High running stability and reliability
10. True sine wave form power output
11. High efficient transformer isolation
12. Buzzer alarm while over-loading/voltage, high-temperature.
