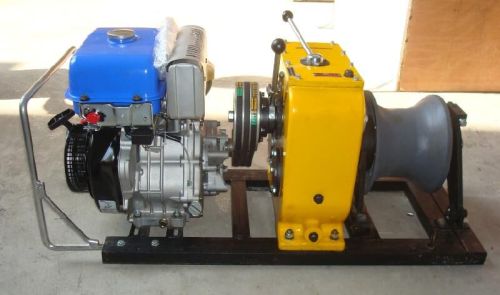

Contact Supplier5 Ton HONDA or YAMAHA gasoline engine powered winch for pulling and lifting Application: Hand installment:if the prime motor doesn`t work well during the working process, you can use the hand installment to help you complete the job. Lubrication:using the gasoline to lubricate the gearbox and using the butter to lubricate the outside bearing. 5 Ton HONDA gasoline engine power winch for pulling and lifting is used for tower erection,pole setting,stringing wire in electrical power line construction.The engine of this product is Honda Air-cooled petrol enging.It doesn't need water, is just cooled by air. Features: 1.Speedy and Efficient; 2.Safe and Reliable; 3.Compact structure; 4.Small volume; 5.Light in weight; Technical Data: Product No. Model Rated Load (KN) Orientation Gear Pulling Force (KN) Pulling Speed (mmin) Total Weight (KG) 10052 GM-1P (Petrol) 10 Positive Ⅰ(Slow) 8(0.8T) 12 50 Ⅱ(Fast) 6(0.6T) 18 Reverse Ⅰ(Slow) No Lifting 12 Ⅱ(Fast) 18 10053 GM-1E (Electric) Positive Ⅰ(Slow) 8(0.8T) 12 55 Ⅱ(Fast) 6(0.6T) 18 Reverse Ⅰ(Slow) No Lifting 12 Ⅱ(Fast) 18 10054 GM-3P (Petrol) 30 Positive Ⅰ(Slow) 30(3T) 4 85 Ⅱ(Fast) 18(1.8T) 7 Reverse Reverse No Lifting 3.5 10055 GM-3D (Diesel) Positive Ⅰ(Slow) 30(3T) 5 100 Ⅱ(Fast) 18(1.8T) 9 Reverse
