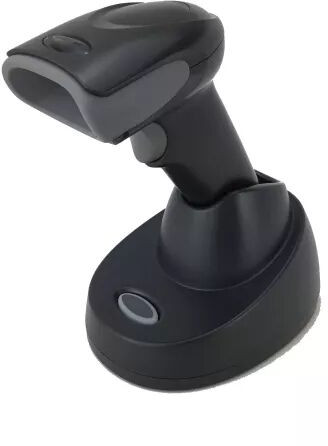

Honeywell 1472G1D-2USB 5 1D Wireless Barcode Scanner

WIRELESS
Radio/Range 2.4 GHz to 2.5 GHz (ISM Band)
Adaptive Frequency Hopping Bluetooth v4.2
100 m (300 ft) Line of sight
Battery 2400 mAh Li-ion minimum
Number of Scans Up to 50,000 scans per charge
Expected Duration of Operation 14 hours
Expected Charge Time 4.5 hours
User Indicators Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume)
**MECHANICAL/ELECTRICAL**
Dimensions (L x W x H) 62 mm x 173 mm x 82 mm (2.5 in x 6.8 in x 3.2 in)
Charger/Communication Base CCB01-010BT-V1N 123 mm x 102 mm x 81 mm (5.2 in x 4.0 in x 3.2 in)
Scanner Weight 210 g (7.4 oz)
Charger/Communication Base Weight 179 g (6.3 oz)
Operating Power (Charging) Charger/Communication Base: 5W (1A @ 5V with power supply); 2.5W (0.5A @ 5V with USB)
Standby Power Charger/Communication Base: 0.5 W (0.1 A @ 5V)
Host System Interfaces USB, Keyboard Wedge, RS-232, RS485 support for IBM 46xx (RS488)
**ENVIRONMENTAL**
Operating Temperature Scanner: 5°C to 40°C (41°F to 104°F); Charging: 5°C to 40°C (41°F to 104°F)
Non-Charging 0°C to 50°C (32°F to 122°F)
Charger/Communication Base 5°C to 40°C (41°F to 104°F)
Non-Charging Temperature -40°C to 60°C (-40°F to 140°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Charger/Communication Base Storage -40°C to 70°C (-40°F to 158°F)
Electrostatic Discharge (ESD) Scanners and Cradles: ±8 kV indirect coupling plane, ±15 kV direct air
Humidity 0% to 95% relative humidity, non-condensing
Drop Spec. 1.8 m (6 ft) drops to concrete
Environmental Sealing IP52
Light Levels 0 to 100,000 lux (9,290 to 10,000 foot candles)
**SCAN PERFORMANCE**
Scan Pattern Area Image (1040 x 720 pixel array)
Motion Tolerance 70 cm/s (27.6 in/s) for 13 mil UPC at optimal focus
Print Contrast 15%
Scan Angle Horizontal: 39.2° nominal; Vertical: 27.4° nominal
Roll, Pitch, Skew ±180°, ±65°, ±70°
Barcode Types Reads standard 1D, PDF, 2D, and DotCode symbologies
Warranty 3-year factory warranty
