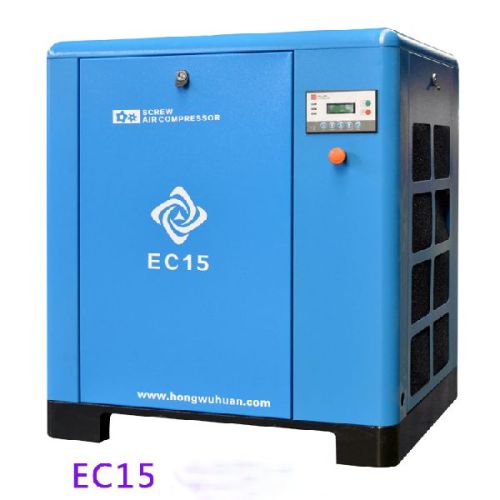

Hongwuhuan EC15 AC Power 15kw Screw Air Compressor

Aluminum case of hongwuhuan ec15 ac power 15kw screw air compressors makes the weight of ac power screw air compressor lighter;original imported solenoid valve, high-power coil ensure least thermal power, more reliable performance, longer life expectancy. Ec series technical parameters                                                                                                             model parameters   ec7t ec7 ec11 ec15 ec22d ec37d air displacement m³/min 1.15 1.15 1.62 2.3 3.6 6.1 discharge pressure mpa 0.8 0.8 0.8 0.8 0.8 0.8 compressed stage   single single single single single single motor power kw 7.5 7.5 11 15 22 37 motor rotate speed rpm 2950 2950 2950 2950 2950 2950 power supply v/p/hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 start mode   direct start direct start direct start y-△ y-△ y-△ drive mode   belt drive belt drive belt drive belt drive direct drive direct drive air inlet size   g3/4" g3/4" g3/4" g1" g1" g1-1/2'' cooling method   air cooling air cooling air cooling air cooling air cooling air cooling length mm 1165 705 905 905 1180 1340 width mm 725 600 745 745 800 900.
