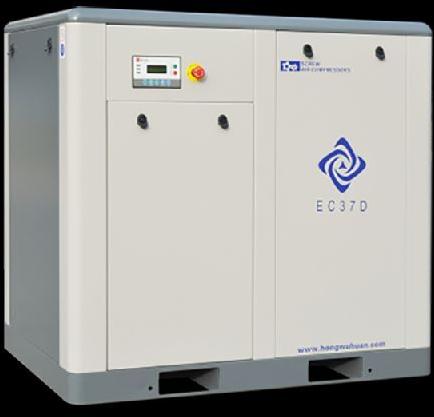

Hongwuhuan EC37D 37kw Direct Driven Screw Air Compressor

Hongwuhuan ec37d 37kw direct driven screw air compressors have professional oil coolers and after-coolers which are used independently to improve cooling efficiency;hongwuhuan n37kw air compressors apply high performance air filter,oil filter and air oil separator to guarantee air cleanliness and prolong the service life of the internal components of air compressors. Ec series technical parameters                                                                                                                                                                model parameters   ec7t ec7 ec11 ec15 ec22d ec37d air displacement m³/min 1.15 1.15 1.62 2.3 3.6 6.1 discharge pressure mpa 0.8 0.8 0.8 0.8 0.8 0.8 compressed stage   single single single single single single motor power kw 7.5 7.5 11 15 22 37 motor rotate speed rpm 2950 2950 2950 2950 2950 2950 power supply v/p/hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 start mode   direct start direct start direct start y-△ y-△ y-△ drive mode.
