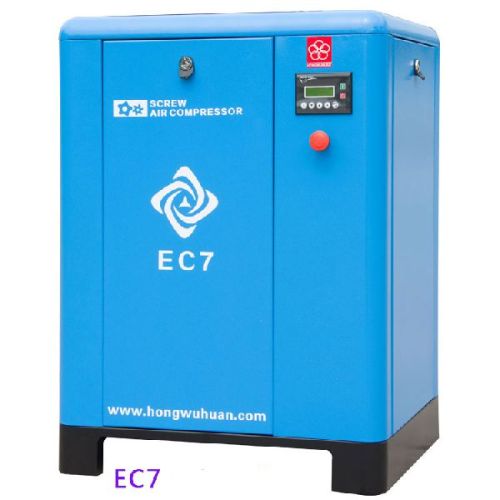

HONGWUHUAN EC7 Mini Electric Stationary Screw Air Compressor

Hongwuhuan belt driven screw air compressors with high efficiency, low noise and small size are easy to move, suitable for use in the traditional industrial and household areas. They are good upgraded products of the traditional piston air compressors.all our products keep product energy saving certificate and quality certificate iso9001 and environmental certificate iso14001. Ec series technical parameters                                                                                                          model parameters ec7t ec7 ec11 ec15 ec22d ec37d ec55d air displacement m³/min 1.15 1.15 1.62 2.3 3.6 6.1 10.2 discharge pressure mpa 0.8 compressed stage single motor power kw 7.5 7.5 11 15 22 37 55 motor speed rpm 2950 power supply v/p/hz 380/3/50 start mode direct start y-△ drive mode belt drive direct drive air inlet size g3/4" g3/4" g3/4" g1" g1" g1-1/2'' g2" cooling method air cooling length mm 1165 705 905 905 1180 1340 1600 width mm 725 600 745 745 800 900 970 height mm 1170 950 1055 1055 1100 1240 1450 net weight kg 250 210 290 310 500 780 1300 certificates                 &n.
