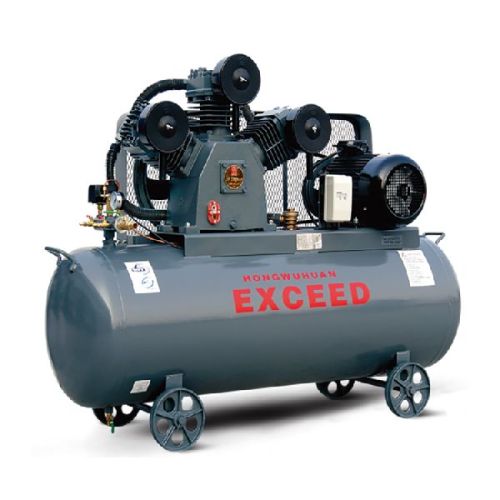

Hongwuhuan HW15007 AC Power 320L 3 Cylinder Compressor

Hongwuhuan hw15007 ac power 320l 3 cylinder compressor has high-strength wear-resistant crankshaft configuration double balance blocks and high-precision bearings, to ensure optimal balance of operation.patented, specially-angled arc vane providing an additional 10% cooling air flow to quickly reduce the exhaust temperature. Hw series technical parameters                                                                                                            model parameters unit hw4007 hw5507 hv7507 hw10007 hw15007 hw20007 air displacement m³/min 0.4 0.5 0.7 1.05 1.5 2.1 discharge pressure mpa 0.7 0.7 0.7 0.7 0.7 0.7 crankshaft speed rpm 860 1050 830 820 830 830 cylinder no. 3 3 2 3 2/1 2/1 cylinder diameter mm 70 70 100 100 125/110 125/110 piston stroke mm 55 55 72 72 80 110 air receiver volume l 120 170 250 320 320 500 motor power kw 3 4 5.5 7.5 11 15 cooling method air cooling whole weight kg 200 215 285 335 487 582 length mm 1340 1360 1670 1690 1740 1840 width mm 470 510 500 530 590 640 height mm 980 1020 1090 1260 1350 1460 certificates.
