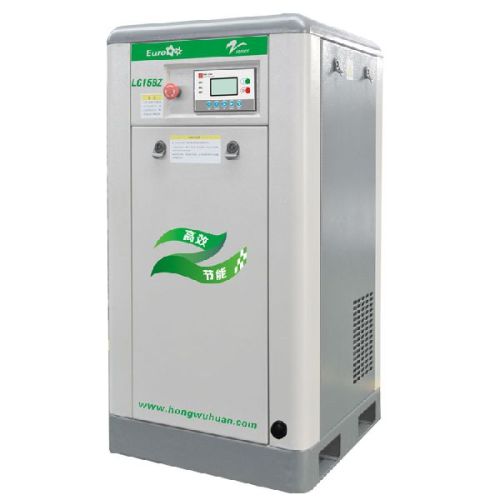

Hongwuhuan LG15BZ Industrial 15kw Screw Air Compressor

Motors for hongwuhuan lg15bz industrial in accordance with united states nema standard design and manufacturing.f grade insulation, ip54 grade protection, absolute swedish skf imported bearings;hongwuhuan industrial screw air compressors have large starting torque, low noise, high efficiency. Lgbz series technical parameters                                                                                                         model parameters lg7bz lg11bz lg15bz air displacement m³/min 1.15 1.65 2.3 discharge pressure mpa 0.8 0.8 0.8 compressed stage   single single single motor model   y2-132s2-2 ly-132m1-2 ly-132m2-2 motor power kw 7.5 11 15 motor speed rpm 2950 2950 2950 power supply v/p/hz 380/3/50 start mode   direct start direct start y-∆ drive mode   belt drive belt drive belt drive air inlet size   g3/4'' g3/4'' g1'' cooling method   air cooling air cooling air cooling length mm 560 650 650 width mm 630 720 720 height mm 1075 1180 1180 net weight kg 200 300 350 certificates.
