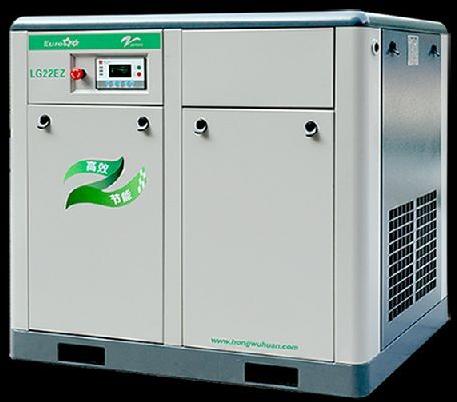

Hongwuhuan LG22EZ 22kw Stationary Screw Air Compressor

Hongwuhuan lg22ez 22kw stationary screw air compressors have the advantages of reducing no wearing parts; having higher transmission efficiency. Peak efficiency low-pressure toothed shape, optimal flow design, large rotor, low rotate speed, high reliability for the compressors provide strong heart and synchronize efficiency and energy saving. Ec series technical parameters                                                                                                              model parameters lg22ez lg37ez lg55ez lg75ez air displacement m³/min 3.6 6.1 10.2 13.5 discharge pressure mpa 0.8 0.8 0.8 0.8 compressed stage   single single single single motor model   ly-160l-2 ly-180l-2 y2-225m-2 y2-250m-2 motor power kw 22 37 55 75 motor rotate speed rpm 2950 2950 2950 2950 power supply v/p/hz 380/3/50 380/3/50 380/3/50 380/3/50 start mode   y-△ y-△ y-△ y-△ drive mode   direct drive direct drive direct drive direct drive air inlet size   g1" g1-1/2" g2" g2" cooling method   air cooling air cooling air cooling air cooling length mm 1300 1300 1600 1750 width mm 750 880 970 1030 height mm 1200 1250 1450 1450.
