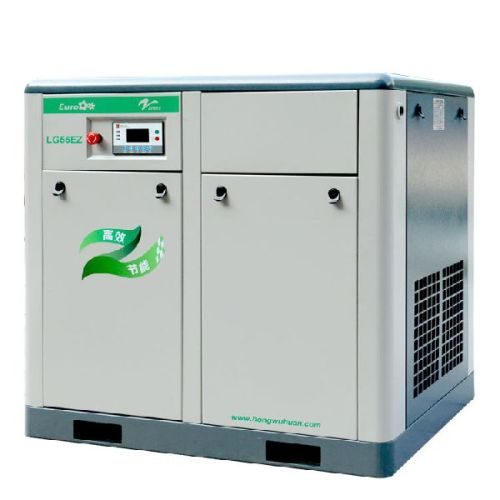

Hongwuhuan LG55EZ 55kw Direct Screw Air Compressor

Hongwuhuan lg55ez 55kw direct screw air compressors adopt mute design, optimized sound-absorption structure, preset large volume prepositive air filtration, smooth flow to reduce noise and airflow loss to the lowest level in the industry.55kw screw air compressors adopt the low pressure and high efficiency gear shape, optimizing the runner design, large rotor, low speed, high efficiency and high reliability, providing a powerful force for screw air compressor, so that 55kw air compressors can achieve synchronization of efficiency and energy saving. Lgez series technical parameters                                                                                                           model parameters lg22ez lg37ez lg55ez lg75ez air displacement m³/min 3.6 6.1 10.2 13.5 discharge pressure mpa 0.8 0.8 0.8 0.8 compressed stage   single single single single motor model   ly-160l-2 ly-180l-2 y2-225m-2 y2-250m-2 motor power kw 22 37 55 75 motor rotate speed rpm 2950 2950 2950 2950 power supply v/p/hz 380/3/50 380/3/50 380/3/50 380/3/50 start mode   y-△ y-△ y-△ y-△ drive mode   direct drive.
