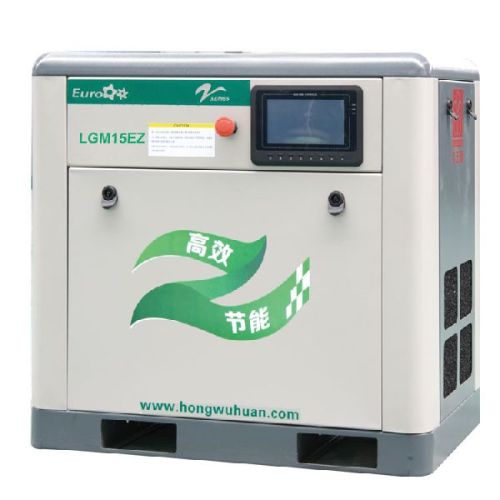

Hongwuhuan LGM22EZ Magnet Frequency Air Compressor

Hongwuhuan permanent magnet variable frequency screw compressors can maintain high output efficiency at low rotate speed. The greater the fluctuation of air volume of hongwuhuan lgm22ez magnet frequency air compressor  in the system, the more obvious energy saving effect is. Lgmez permanent magnetic vsd series technical parameters                                                             model parameters lgm7ez lgm11ez lgm15ez lgm22ez lgm37ez lgm55ez lgm75ez air displacement m³/min 1.15 1.65 2.3 3.6 6.1 10.2 13.5 discharge pressure mpa 0.8 compressed stage single motor power kw 7.5 11 15 22 37 55 75 motor rotate speed rpm 2950 power supply v/p/hz 380/3/50 start mode soft start drive mode direct drive air inlet size g3/4" g3/4" g1' g1" g1-1/2" g2" g2" cooling method air cooling length mm 835 1020 1020 1250 1400 1600 1750 width mm 535 640 640 770 880 970 1030 height mm 800 865 865 1115 1250 1450 1450 net weight kg 220 350 380 580 780 1000 1200 certificates.
