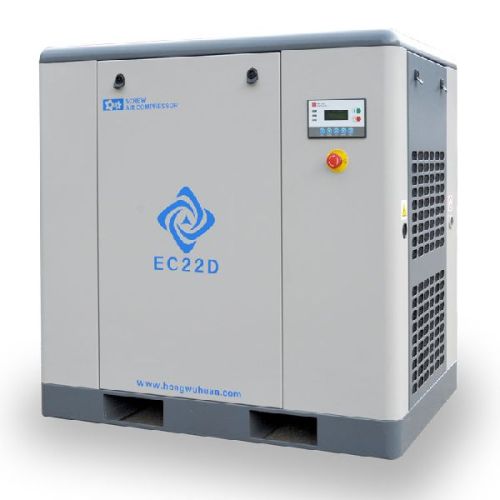

Hongwuhuan New Design EC22D Air Compressor Price

Oil coolers and aftercoolers of Hongwuhuan new design EC22D air compressor price are used independently to improve cooling efficiency;Hongwuhuan new design compressors adopt high performance oil filter to guarantee oil cleanliness and prolong the life of the internal components of air compressors. EC series Technical Parameters                                                                                                             Model Parameters   EC7T EC7 EC11 EC15 EC22D EC37D Air Displacement m³/min 1.15 1.15 1.62 2.3 3.6 6.1 Discharge Pressure MPa 0.8 0.8 0.8 0.8 0.8 0.8 Compressed Stage   Single Single Single Single Single Single Motor Power KW 7.5 7.5 11 15 22 37 Motor Rotate Speed rpm 2950 2950 2950 2950 2950 2950 Power Supply V/P/Hz 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 380/3/50 Start Mode   Direct Start Direct Start Direct Start Y-△ Y-△ Y-△ Drive Mode   Belt Drive Belt Drive Belt Drive Belt Drive Direct Drive Direct Drive Air inlet size   G3/4" G3/4" G3/4" G1" G1" G1-1/2'' Cooling Method   air cooling air cooling air cooling air cooling air cooling air cooling Length mm 1165 705 905 905 118.
