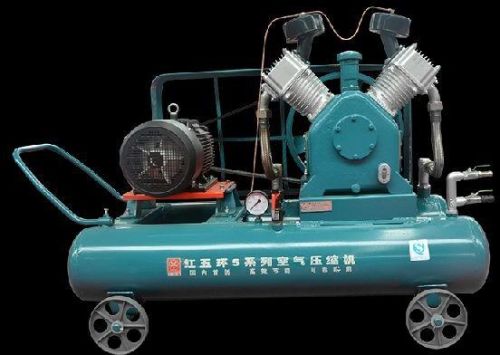

Hongwuhuan W1.8/5 Electric Mining 5bar Piston Air Compressor

Hongwuhuan w1.8/5 electric mining 5bar piston air compressor w series mining piston air compressors adopt sweden imported thick stainless steel reed valve with small resistance, high efficiency and durability. Enhanced special automatic clutches are reliable and durable.intake, exhaust separated high-strength patent cylinder head have good heat insulation and heat dissipation. W mining series technical parameters                                                                                                      model parameters unit w1.8/5 w2.85/5 w3.0/5 w3.5/5 air displacement m³/min 1.8 2.85 3 3.5 discharge pressure mpa 0.5 0.5 0.5 0.5 crankshaft speed rpm 1180 1070 1070 1070 cylinder no. 3 3 3 3 cylinder diameter mm 100 115 120 125 piston stroke mm 80 100 100 100 air receiver volume l 130 200 200 200 motor power kw 11 15 15 18.5 diesel engine s1100 s1110 s1115 s1125 cooling method air cooling weight with motor kg 257 340 345 350 weight with diesel kg 299 400 405 410 length mm 1630 1750 1750 1750 width mm 750 940 940 940 height mm 1150 1290 1290 1290.
