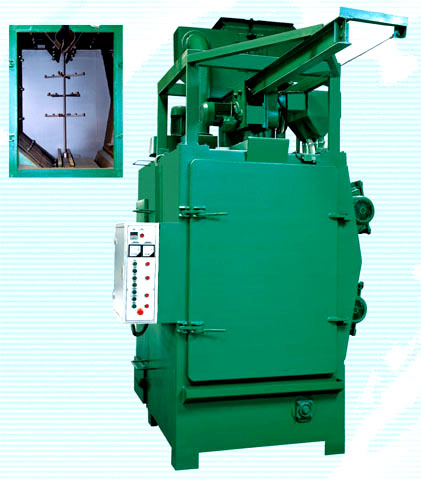

Hook Model Shot Blasting Machine

technical parameters of q37 series airless blast cleaner
no. item q376 q378 q3710 q3720 q3730 q3750 q3780 q37100 q37160 q37200
1 size of cleaning piece cm ø70*112 ø90*160 ø100*185 ø140*230 ø160*220 ø180*250 ø200*300 ø250*350 ø260*400 ø300*
600
2 carrying weight of single hook kg 600 1000 1000 2000 3000 5000 8000 10000 16000 20000
3 abrasive flow rate kg/min 2*140 2*
260 2*260 3*260 3*260 4*260 4*260 5*260 6*260 7*260
4 lifting amount of elevating conveyor t/h 16 24 33 48 48 60 60 75 90 110
5
separating amount of separator t/h 16 24 33 48 48 60 60 75 90 110
6 ventilation capacity m³/h 5000 8000 9000 15000 15000 18000 20000 22000 25000 30000
7 power(excluding dedusting) kw 19 32.5 36.55 61.27 64.4 78.4 81.5 105 130 150
8 outline dimensions cm 443*285*420 424*266*501 505*385*516 611*360*785 708*465*865 706*546*885 805*640*853 900*540*860 950*600*1100 950*700*1100
