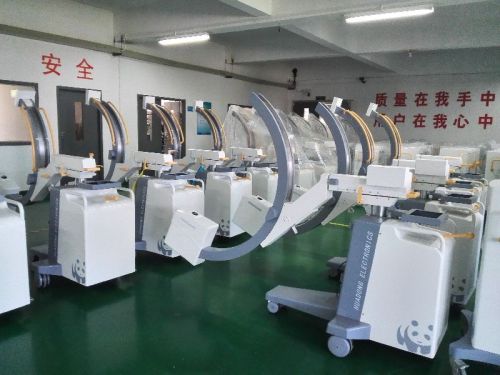

Hopedic Mobile C-arm Machine

Main specification

HF generator

110kV,3.5kW ,40kHz

Fluoroscopy mode

Fluoroscopy mode40~110kV 0.5~5mA

 (KV manual and automatic);

Pulsd fluoroscopy 40~110kv  0,5-5mA

Boost fluoroscopy 40~110kV 5~10mA;

Photography 40~110kV  1~250mAs

X ray tube

Dual-focus fixed anode:0.6mm/1.5mm

 Italy IMD Technology

Image intensifier

Three fields of vision 9, 6, 4.5   French Thales Brand

CCD camera

CCD camera, Japanese Watt Brand, 360° rotation

Image system

Recursive Noise Reduction

Frame freezing

Multi frame image storage

Image conversing and rotating

Screen display with image comparison

Mechanical motion specifications

Verticaltravel:0-400mm              Horizontaltravel:0~200mm                      Rotation about horizontal axis:±180°

C-arm dimension

Distance of focal spot to image generator(SID):1000mm

Depth in arm ≥650mm

Mobile stand :1800mm*800mm*1850mm

Image system: 750mm*530mm*1680mm

Standard configuration

High resolution CCD camera:1set

x-ray generator:1set

9” image intensifier:1set

Digital Noise reduction system

15” High resolution monitor :2sets

Mobile stand :1 set
