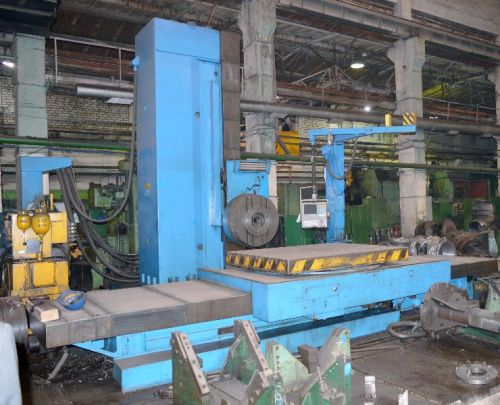

Horizontal Boring Machine

horizontal boring mill bfkp-130 cnc

manufacturer: union

condition: working, can inspect under power. The machine is equipped heidenhain and faceplate

general description: horizontal boring and milling machine union bfk-130 cnc is used for machining of large parts and irregular shape of design and also cast details. It is particularly beneficial to use for precise drilling, boring, milling and axis facing at high accuracy requirements

- spindle diameter, mm 130

- spindle taper iso 50

- spindle torque, nm 5350

- spindle speeds, rpm 1120

- main motor power, kw 47

- x axis (table), mm 3000

- y axis (headstock), mm 2000

- z axis (column - longitudinally), mm 1000

- w axis (spindle movement), mm 850

- u axis (support of faceplate), mm 280

- feed-rate x, y, z, w / u axis, m/min 10, 10, 10, 10, / 1

- rotary table size, mm 2000 x 1600

- b axis (table rotation angle), deg 360

- power capacity, kw 80

- machine weight, kg 26000
