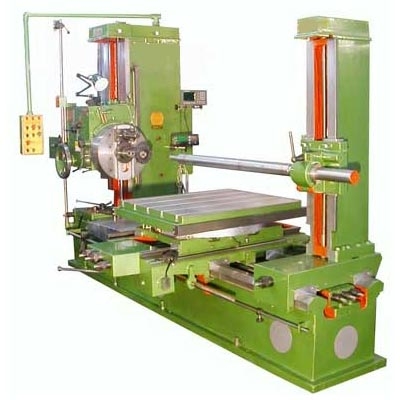

Horizontal Boring Machine

Listing ID #3822627

  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world

STANDARD EQUIPMENTS : Electric Motors Complete with Panel Board & Pendant Control for all operations. One Steel Telescopic Cover, One Boring Bar, Working Spindle Support Guide for Vibration Control,....
View More Details
Send Enquiry

Company Information

  • Member Since 10 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

STANDARD EQUIPMENTS : Electric Motors Complete with Panel Board & Pendant Control for all operations. One Steel Telescopic Cover, One Boring Bar, Working Spindle Support Guide for Vibration Control, Co-ordinate reading arrangement with Scales & Verniers for X. Y.Z.-Axis and Handles. Facing head, 2No. Lubricating Pumps, 5 No. limit Switches & Automatic Rapid Travel, fitted with the Machine. Revolving Centre with 6"True Chuck Three Nos. Dial Indicators duly fitted in dust proof housings with attachment & Electric Coolant Pump. EXTRA EQUIPMENTS : Milling Attachment. Taper Boring Attachment. Threading Attachment. 2Axis D.R.O.


lloy Steel Work Spindle Hardened & Ground-Diameter 65 80 100 110 125
MorseTaper Number 4 5 6 6 6
Max. Longitudinal Movements of Working Spindle 410 510 510 510 600
Number of Spindle Speeds 9 9 9 9 9
Range of Spindle Speeds - R.P.M. 20 to 300 15 to 300 15 to 300 15 to 250 15 to 250
Longitudinal Work Spindle Feeds Nos. 9 9 9 9 9
Max. Height of the Spindle Axis from Table Surface 800 925 1000 1100 1200
Min. Height of the Spindle Axis from Table Surface 20 25 30 30 30
Dimensions of the Rotary Table 840 x 1050 900 x 1105 1030 x 1375 1100 x 1450 1220 x 1675
Longitudinal Table Traverse 1500 1625 1775 1925 2050
Long. Table Traverse Feeds (Including one Rapid) 10 10 10 10 10
Transversal Table Travel Feeds (Including one Rapid) 10 10 10 10 10
Vertical Head Stock Travel Feeds Includin one Rapid 4 4 4 4 10
Rotary Table Automatic Feeds (Including one Rapid) Nil 10 10 10 10
Max. Cross Movement of the Table 910 1000 1100 1 300 1500
Max. Distance between Stay Bearing & Facing Head 2150 2400 2690 2800 2950
Facing Head Diameter 450 505 555 600 650
Weight Approximate in Kgs. (with Packing & Accessories) 7500 9500 11500 14500 18000
Weight Approximate in Kgs. (without Packings Accessories) 7000 8500 9500 11000 13500
Power Motor (HP) 3 & 1.5 5 & 2 7.5 & 2 10 & 3 12.5 & 5
