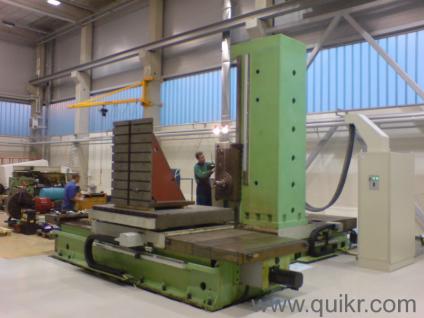

Contact SupplierWe are offering horizontal boring machine -table type (whn 13.4 cnc).
The machine is in good working condition, year of manuf. 2009 and the machine is in europe.
the technical specs. Are below.
diameter of working spindle: 130 mm
cross adjustment of table (x): 2000 mm
motion of work head on frame (y): 2000 mm
longitudinal adjustment of pedestal (z): 1250 mm
slip out of working spindle (w): 800 mm
clamping area of table: 1600 x 1800 mm
taper in spindle: iso 50
main motor output: 37 kw
rotation of spindle: 1000 rpm.
Dimensions l x w x h: 7480 x 6300 x 4800 mm
machine weight: 32000 kg.
