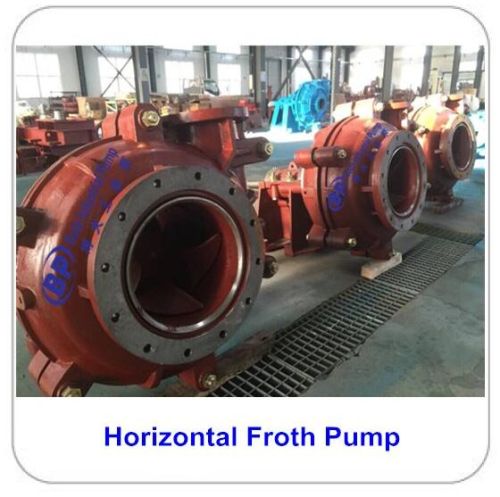

Horizontal Centrifugal Froth Slurry Pump

Horizontal centrifugal froth slurry pump description: horizontal  froth pumps are of heavy duty construction, designed for continuous pumping of highly abrasive and corrosive frothy slurries. Its pumping operations can be plagued by froth and high viscosity problems. In the liberation of minerals from ore, the minerals are often floated through the use of strong flotation agents. Tough bubbles carry the copper, molybdenum or iron tails to be recovered and further processed. These tough bubbles create havoc with many slurry pumps, often leading to the selection of overly large and inefficient pumps. Horizontal froth pumps are small and efficient. The inducer impeller and oversized inlet very effectively enable the froth or viscous slurries to get into the impeller allowing the pump to transport it to the next destination. Low power costs, reliable operation, minimal surging, and feed tank overflow make naipu® froth pumps user friendly. Specification  : size range (discharge)4" to 6"   100 mm to 150 mm capacitiesto 3,000 gpmto 680 m3hr headsto 240 ft  to 73 m pressuresto 300 psito 2,020 kpa materials of construction    liners impellers casing base expeller expeller ring shaft sleeve seals standard chrome alloynatural rubber chrome alloynatural rubber sg iron sg iron chrome alloyorsg iron chrome alloyorsg iron sg iron rubberandnitrile options ferraliumhastelloy.
