Horizontal Circle Foam Cutting Machine

MOQ1 Set(s)
automatic digital control can add vacuum system
cutting some pcs foam at one timehorizontal circle cutting machine
Supply TypeManufacturer
Preferred Buyer Location All over the world

Horizontal Circle Cutting Machine: The machine mainly puts many block foam on the worktable cutting slices at the same time, adopt fully automatic digital control, and setting the number as need....

View More Details

Send Enquiry

Company Information

Dongguan ERS Machinery Co.,Ltd

Guangdong

View Number

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2007

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

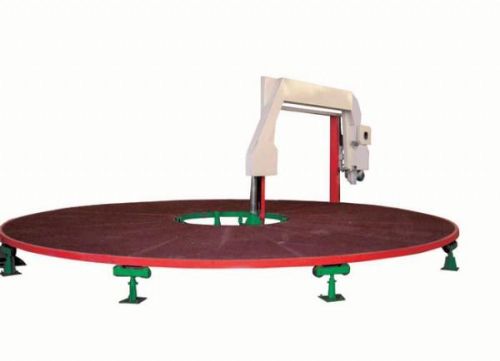

Horizontal Circle Cutting Machine:
The machine mainly puts many block foam on the worktable cutting slices at the same time, adopt fully automatic digital control, and setting the number as need cutting thickness and foam density by control box. The worktable runs automatically. The turning speed of worktable is adjustable. Continuously cutting ,the production efficiency is very high ( worktable also choose adding to vacuum equipment).
Model ERS-HC01 ERS- HC02 ERS- HC03
cutting sponge size:
L2000*W1500*H1200mm(4pcs)/ L2000*W1500*H1200mm(5pcs)/ L2000*W1500*H1200mm (8pcs)
cutting sponge thickness:
2-150mm/ 2-150mm/ 2-150mm
worktable turning speed:
0-3.5r/min/ 0-3.5r/min/ 0-2.5r/min
worktable diameter:
￠6m/ ￠7m/ ￠10.5m
blade length:
8940mm/ 10000mm/ 10240mm
total power:
8.12kw/ 8.92kw/ 10.52kw
machine external size:
L7000*W6500*H2500mm/ L7500*W7000*H2500mm/ L11500*W11000*H2500mm
