Description

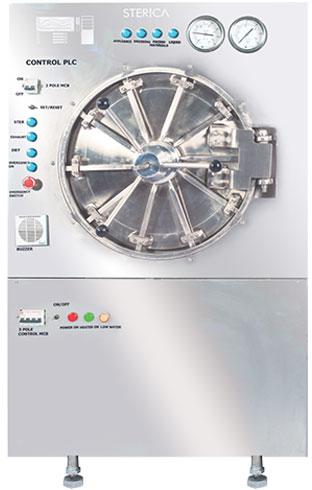

1. Fully Automatic Horizontal Cylindrical High Speed High Pressure Medical Sterilizers
2. Triple walled unit, the sterilizer consists of a chamber with steam jacket and outer insulation cover
3. Door: Single Door  type with radial locking system
4. Single Door Sterilizer has full size SS Panel on Front Loading End. It consists of Touch Screen HMI, Indication Lights, Emergency Switch, Pressure Gauges, Alarm
5. Door Gasket: Expandable type silicone rubber gasket, withstands up to 140°C
6.  Standard features: Dial thermometer, pressure gauges for steam generator and jacket, compound gauge for chamber, sight glass, stainless steel perforated tray and hook, expandable silicone gasket
7. Material of Construction – Steam Sterilizer Chamber, Jacket, Door, Radial Locking Arm, Outer Insulation Cover, Pipelines, Steam Generator all made of heavy gauge SS 304/316/316L grade Stainless Steel
8. Working Pressure: 1.2 kgf/cm² & 2.1 kgf/cm²
9. Working Temperature: 121°C / 134°C
10. Power Supply: 440 V, 3 Phase, 50 Hz AC Supply
11. Safety devices: Pressure switch, safety valves, self locking of door when chamber is under pressure, vacuum breaker, low water level cut-off
12. Safety features: Door locking facility, Low water protection system, Pressure cut off facility and other necessary safety features
13. Hydrostatic test : Hydraulically tested chamber up to 2 times the working pressure and jacket up to 2.5 times the working pressure
14.  Standards: BIS – IS:3829 Latest Edition with ISI mark for High Speed Steam Sterilizers
15.  Documentation: User manual, Warranty Certificate, Hydraulic Test Certificate, Calibration Certificate
