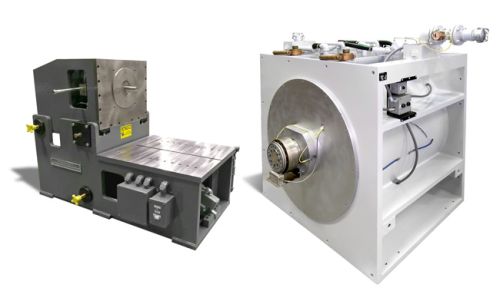

Horizontal Dynamometers

Virtually any size Midwest® or Dynamatic™ dynamometer can be configured either vertically or horizontally. To accommodate testing of small engines and motors with both vertical and horizontal shaft orientations, Dyne Systems also provides a compact small engine portable dynamometer “tilt stand” that locks in the horizontal or vertical positions, with fixtures for mounting and coupling both styles of engines or motors during test. These portable dyno test stands can be configured with an AC (motoring and absorbing) dynamometer or an Eddy Current (absorbing) dynamometer, depending on the application.
