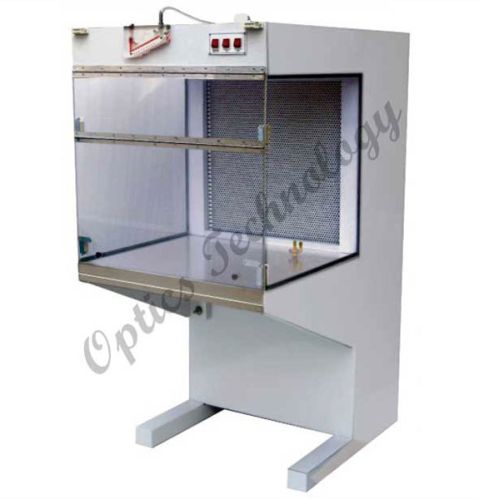

Horizontal Laminar Air Flow

Our organization has established its remarkable presence in global market for offering optimum quality Horizontal Laminar Air Flow. Designed with utmost precision, our Horizontal Laminar Air Flow comes in variegated specifications to suit diverse requirements of diverse customers. The laminar air flow system is installed in a clean room to create an ultra-clean environment. It is a self-contained workstation made up of quality wood. All visible surfaces are laminated with white decolam Lamination. On the other hand, the interior surfaces are painted with air drying Epoxy paint. The filter seat has rubber padding for a perfect rubber to rubber sealing. The front and side panels are made of transparent acrylic sheet. We provide our Horizontal Laminar Air Flow with super air H.E.P.A. filters for high efficiency and reliability. We offer Horizontal Laminar Air Flow at the best market prices.
Other Information :

• Initial pressure drop is less then 25mm W.C. at rated flow
• D.O.P. efficiency is better than 99.97% down to 0.3% microns particle size

• WORKING TABLE OF S.S. 304.

• HEPA of 0.3m of an efficiency of  99.97% down to 0.3m Media Is of glass  fiber & made of pleats
• back & frow in a anodized Aluminum frame.
• Pre filter (10m ) of dry fiber Washable type with the frame on all the sides.
• Confirm International Standard 209 E.
• Statically Balanced motor blower Assembly (Heavy Duty)
• Velocity at the output of HEPA is 90 + 20 FPM
• Ultra-quiet noise level of not more than 65 dBA
• Vibration is also very low.
• Work area properly illuminated by diffused glare free fluorescent light.
• Static Pressure Manometer
• U. V. Light 1 x 30/15 watts.
• Front & Side Door of Acrylic Sheet (Transparent)
• Cock for gases or vacuum line

• Magnehelic Gauge in place of manometer
• U.V. Resistant Poly Carbonate Sheet in Place of Acrylic Sheet
• LCD display with soft touch switches for Motor, U.V. Light, F.V. Light and U.V.Timer
• Microprocessor based Touch screen display system with special features like
  • Display of velocity with lower and upper safe limits.
  • Display of total run time of instrument & timer for U.V. lamp
  • Control of U.V. light to prevent the operator from U.V. rays as and when required.
  • Door sensors to switch off the UV light when door is opened.
  • Display of message for life of HEPA filter, U.V. light etc.
• Mini Pleat Hepa Filter (Separator Less)

• 3' x 2' x 2'
• 3' x 2' x 2'
• 4' x 2' x 2'
• 6' x 2' x 2'
• 8' x 2' x 2'
