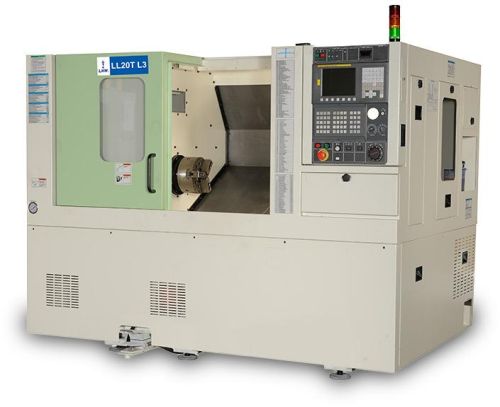

Horizontal Lathe

Listing ID #4243134

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

7.5 kW (continuous) power at the spindle provides enormous capacity for highly efficient metal cutting. A massive hydraulic turret providing over 23 kN of clamping force ensures ver y stable machining. Ver y responsive feed mechanism incorporating widely spaced, amply dimensioned Linear Motion guides and large diameter ball screws provide excellent par t-to-par t repeat accuracies. Copious coolant and stability in machining ensure use of optimum cutting parameters, thereby reducing cost. Inter ference free turning diameter and ample working clearances add to operator convenience.

View More Details

Send Enquiry

Product Details

DESCIPTION	UNIT	LL 20T L3
CAPACITY
Swing Over bed	mm	510
Chuck dia. Max	mm	210
Max. Turning dia	mm	320
Max. Turning Length	mm	310
SPINDLE
Spindle nose	type	A2-6
Hole through spindle	mm	61
Spindle speed	rpm	2250
Spindle motor power	kW	7.5 / 11
FEED
Cross travel X-axis	mm	185
Longitunal travel Z-axis	mm	370
Rapid traverse rate X/Z axes	m/min	30 / 30
TURRET
No. of stations	nos.	8
Tool shank size	mm	25 x 25
Max. Boring bar dia	mm	40
Turret Indexing	type	Bi-directional
Turret indexing time	sec	Less tha 1
TAILSTOCK
Quill dia	mm	75
Quill stroke	mm	100
Quill taper	-	MT-4
CNC SYSTEM
Controller	-	Fanuc / Siemens*
MACHINE SIZE
Front x Side	mm	2065 x 1925
Weight	Kg	3500

Company Details

To diversify operations, LMW collaborated with Japan’s Mori Seiki Co. Ltd to establish the Machine Tool Division in 1988, which is the first of its kind plant in India manufactures CNC Lathes, Machining Centres and Turnmill Centres. Till date, LMW MTD has supplied more than 14,000 CNC lathes and machining centres to a wide customer base spans automobile industry, auto ancillaries, and general engineering industries. In addition to several technology partnerships to upgrade its offerings, LMW MTD has developed its indigenous research capabilities with pride and dedication.
In 1995, LMW joined hands with Mikron, Switzerland for manufacture of CNC Universal Boring and Milling machines for Tool Room. In addition to selling the machines in domestic market LMW had buy back arrangement with Mikron.
In the hugely segmented Indian market for CNC machines where a large number of old and new companies vie for a market share, LMW occupies a special place in the country because of its highest quality, longevity, easiest-to-use machines range, best value for money, and world class customer support. LMW MTD’s dedicated and experienced service team has set enviable track records in attending to customers through both on-site and remote means.
