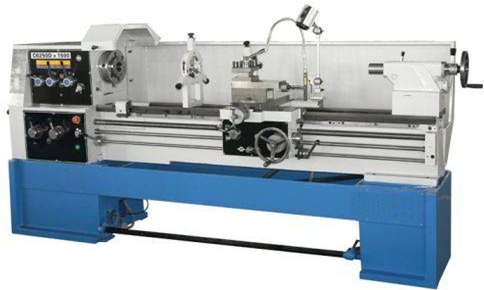

Horizontal Lathe C Series

We are offering horizontal lathe.
Specifications
gap
straight
gap
straight
gap
straight
gap
c62
32d
c61
32d
c62
36d
c61
36d
c62
40d
c61
40d
c62
50d
center height
160mm
180mm
200mm
250mm
max. Swing
over bed
320mm
360mm
400mm
500mm
max. Swing
over carriage
190mm
190mm
210mm
210mm
max. Swing
in gap
520mm
-
540mm
-
560mm
-
590mm
effective gap
length
200mm
-
200mm
-
200mm
-
200mm
max. Work
piece length
500mm or 750mm or 1000mm or 1500mm
spindle taper
mt 6
thru-hole
of spindle
52mm
spindle speed
30 1600 rmin (12 steps)
cross travel
240mm
compound travel
140mm
tail stock center
sleeve travel
90mm
tail stock cente
r sleeve taper
mt 4
motor power
34kw
range of metric
threads (kinds)
0.45-20mm(30)
range of inch
threads(kinds)
80-1.75 n I
long. Feed per
spindle rev.
0.04-2.16mm
cross feed per
spindle rev.
0.02-1.08 mm
overall dimensions
work-piece length
500mm
1700*1130*1200 mm
work-piece length
750mm
2000*1130*1540 mm
work-piece length
1000mm
2250*1130*1540 mm
work-piece length
1500mm
2800*1130*1540 mm
net weight
work-piece length
500mm
1200kg
1300kg
1500 kg
work-piece length
750mm
1400kg
1500kg
1700kg
work-piece length
1000mm
1500kg
1600kg
1700kg
work-piece length
1500mm
1700kg
1800kg
2000kg
