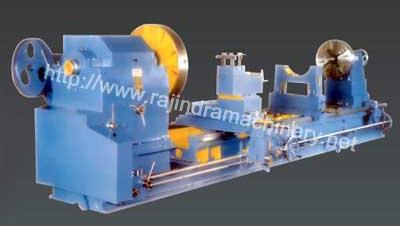

Horizontal Lathe Machine - 03

Listing ID #1994021

Get Latest Price

Supply Type Supplier

Preferred Buyer From : All over the world

Special features of Rajindra High Quaity Lathe Machines Rajindra Lathes are designed for the continuous light and heavy duty jobs and give prolonged efficient life. These are made in simple,....

View More Details

Send Enquiry

Product Details

Special features of Rajindra High Quaity Lathe Machines

Rajindra Lathes are designed for the continuous light and heavy duty jobs and give prolonged efficient life. These are made in simple, 3-speed gear box front side, 3-speed gear box semi Norton type front side, Norton type and geared types, possess exceedingly improved features, both in construction as well as in design. These lathes are suitable for use in most machine and repairs shops, technical and apprentice schools, instruction where economy of operation, accuracy and reliability are primary considerations.

Bed : It's deep wide and internally reinforced by a new and latest system of webs which enable it to take up heavy thrust of tools without vibration and is made of close grained cast iron, mixed with salts to attain requisite hardness & to prevent any possibility of distortion either horizontally or vertically. It is V-Type and accurately hand scrapped. A removable gap piece is fixed with 2 location pins for perfect alignment. The bed consists of three vees.

The Leadscrew : is inch calibrated and is made of high resistant alloy steel,It has a large diameter and its thread has a very high degree of precision.

Head stock : The flat seat of head stock over bed is perfectly matched by precision hand scrapping. It s spindle is made from high carbon steel which rotates on two cylindrical precision split type gun metal bushes of Grade-I composition both at the front and at the back for smooth running and perfect balancing and thrust of the spindle is taken by heavy duty thrust bearings. The machines are also made by fitting Taper Roller Bearings in the head stock.

Tail Stock : It is strong, rigid and provided with set-over motion for taper turning. Its quill is fairly thick and properly graduated.

The Apron : The Apron is of double wall design with automatic interlock to prevent simultaneous engagement of feed shaft and lead screw. All gears and bearings including worm have suitable oiling arrangement.

Carriage : It is of robust design and provided with long carefully scrapped sliding surfaces. The swiveling compound slide is accurately indexed for taper turning and has a four-way steel turret tool post.

Standard Equipment : Face plate, Steady rest, Follow rest. Thread dial gauge, 2 M.T .Centre. Over head counter shafts (with belt driven lathes only ) and a set of 22 change wheels.
