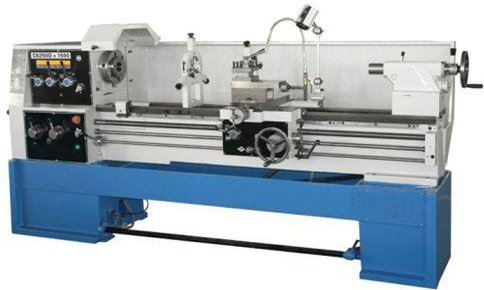

Horizontal Lathe

We are offering horizontal lathe c series,horizontal lathe ca series
specifications gap straight gap straight gap straight gap straight
c6232d c6132d c6236d c6136d c6240d c6140d c6250d c6150d
center height 160mm 180mm 200mm 250mm
max. Swing over bed 320mm 360mm 400mm 500mm
max. Swing over carriage 190mm 190mm 210mm 210mm
max. Swing in gap 520mm - 540mm - 560mm - 590mm -
effective gap length 200mm - 200mm - 200mm - 200mm -
max. Work piece length 500mm or 750mm or 1000mm or 1500mm
spindle taper mt 6
thru-hole of spindle 52mm
spindle speed 30�1600 rmin (12 steps)
cross travel 240mm
compound travel 140mm
tail stock center sleeve travel 90mm
tail stock center sleeve taper mt 4
motor power 34kw
range of metric threads (kinds) 0.45-20mm(30)
range of inch threads(kinds) 80-1.75 n i�
long. Feed per spindle rev. 0.04-2.16mm
cross feed per spindle rev. 0.02-1.08 mm
overall dimensions
work-piece length 500mm 1700*1130*1200 mm
work-piece length 750mm 2000*1130*1540 mm
work-piece length 1000mm 2250*1130*1540 mm
work-piece length 1500mm 2800*1130*1540 mm
net weight work-piece length 500mm 1200kg 1300kg 1500 kg
work-piece length 750mm 1400kg 1500kg 1700kg
work-piece length 1000mm 1500kg 1600kg 1700kg
work-piece length 1500mm 1700kg 1800kg 2000kg.
