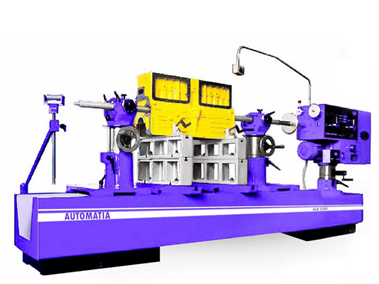

automatia line boring machine, model alh 1500 has boring capacity of 31 – 175 mm with a maximum length of block 1500 mm, max. Distance between built in parallels to boring bar 815 mm, max. Travel of boring bar 325 mm, spindle speed is infinitely variable at 50 – 750 rpm with vfd and is supplied with standard accessories as listed below
| boring bar assembly with bearings, cones, extra supports and cutters |
|
|
|
| into bore gauge (for measuring without removing boring bar) |
| tool grinder |
| extra cutter heads for 30 mm / 40mm/48 mm/60 mm boring bars |
| extension for boring bar 125 mm |
| small bushing for extra support |
| Permanent Parallels | TSM – Tool Setting Micrometer |
| Parallels 100mm high | Extra Support for Boring Bars |
| Parallels 160 mm high | Boring Bar Rest |
| Parallels 200 mm high | TSM with Dial Indicator & Magnetic Base |
| Bearing Bushes for Boring Bars | Tool Setting Device for Cutter Heads |
| Tapered Centering Cones | Centering Device with Dial Indicator |
| Boring Bar 30 x 1600 mm (Hard Chrome plated) | Boring, Facing and Chamfering Tools |
| Boring Bar 48 x 1900 mm (Hard Chrome plated) | Clamps, Bolts and Operating Tools |
| Cutter Head for 30 mm Boring Bar (OD 50 x 70 mm) | Machine Lamp |
| Cutter Head for 48 mm Boring Bar (OD 90 x 115 mm) | Operation Manual |
| TECHNICAL SPECIFICATION | ALB 1500 | ALB 2500 |
|---|---|---|
| Boring Capacity (Standard Boring Bars) | 31 – 175 mm | 31 – 175 mm |
| Boring Capacity (Optional Boring Bars) | 23 – 260 mm | 23 – 260 mm |
| Maximum Length Of Block | 1500 mm | 2500 mm (98.5”) |
| Max. Distance b/w Built-In Parallels To Boring Bar | Maximum : 815 mm Minimum : 515 mm | Maximum : 815 mm (32”) Minimum : 515 mm (20”) mm |
| Max. Travel Of Boring Bar | 325 mm | 325mm (12.8") |
| Max Distance b/w top of bed to boring bar center | 875 mm | 875 mm |
| Min Distance b/w top of bed and boring bar center | 575 mm | 575 mm |
| Spindle Speed | Infinitely variable 50–750 rpm | 50–750 rpm |
| Drive Motor | 1.5 HP , 960 rpm 3 phase, 415v, 50 Hospitalized | 1.5 HP , 960 rpm 3 phase, 415v, 50 Hz |
| Feed: Both Directions Infinitely Variable SERVO | 0.01 – 0.5 mm/rev | 0.01 – 0.5 mm/rev |
| Additional Travel With Extension Bar (Optional) | 325 – 450 mm | 325 – 450 mm |
