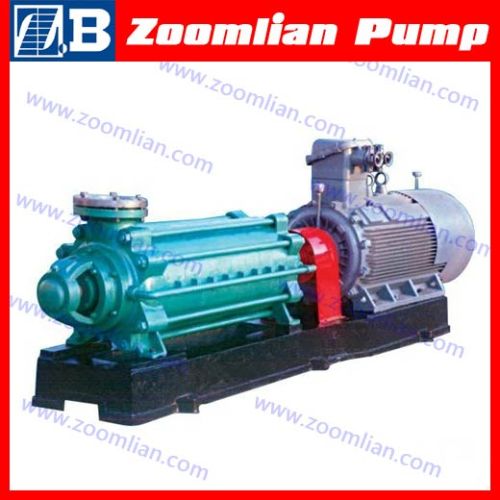

Horizontal Multistage Centrifugal Oil Transfer Pump

Dy series horizontal multistage centrifugal oil transfer pump specifications
1,oil transfer pump
2,industrial oil transfer
3,palm oil transfer pump
4,q:10~650m3h,h:87~850m
technical data :
product name : dy series horizontal multistage centrifugal oil transfer pump
working principle: centrifugal
main applications: oils and oil products without solid particles ,no corrosive
driver: anti-explosive motor
max liquid temperature: 105 degrees centigrade
type of connection: flange
casing material: ht200,qt600,304,316,316l,317l,904l,cd4
impeller material: cast steel, stainless steel
seal: mechanical seal
flow range: 10~650m3h
head:87~850m
speed: 1450rpm2900rpm
bearing: rolling bearing,grease lubricatesliding bearing, dilute oil lubricate
max viscosity : less than 120 centimeter
media size :solid particles that not exceed 2% (particles size is less than 1mm)
features
1. High efficiency and wide range of performance
2. Stable working and low noise
3. With stuffing seal or mechanical seal, the seal is save and reliable, simple structure and easy to maintain.
