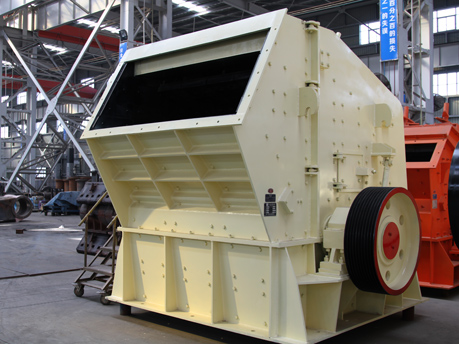

Horizontal Shaft Impact Crusher

Structure of Impact Crusher
The impact crusher is mainly made up of rotor rack, impact rack, ratchet wheel cover-open device, rotating parts as well as other components.
There are two parallel rotors in the mobile impact crusher, with some altitude differences. The position of the first rotor is relatively high, with an angle of 12 degree from the ligature of the first and the second rotor. The first rotor is a heavy type, used for coarse crushing; the second rotor rotates fast, which can meet the need of the final products. The rotors are both fixed with bolts. The 12 blow bars distributed to 6 rows are made of high manganese steel. The rotors are fixed on the main shaft, separately connected with the coupling of two engines. All impact boards are made of high manganese steel.
Working Principle of Impact Crusher
The materials fall to the high-speed rotating turn plate. With the effect of high-speed centrifugal force, these materials will impact with other particles distributed around the turn plate. After inter-impacting, these materials will impact, abrade and crush between the turn plate and the enclosure continuously, and then discharged from the bottom. The impacting, abrading and crushing process will form a closed cycle, with the screening equipment controlling the particle sizes for need.
