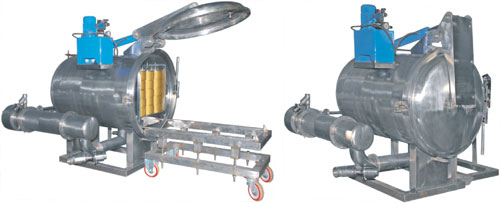

Horizontal Single Vessel Dyeing Machines

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Salient Features • Loading capacity from 100kg to 1000kgs. • M/c can be loaded 50% & above at almost constant liquor ratio. • Automatic coupling system to increase batch capacity....

View More Details

Send Enquiry

Product Details

Salient Features

•

Loading capacity from 100kg to 1000kgs.

•

M/c can be loaded 50% & above at almost constant liquor ratio.

•

Automatic coupling system to increase batch capacity due to modular design.

•

Machine can be installed on a normal plain ground floor without special foundation.

•

Machine can be installed at mezzanine ceiling level, even at under ground pits.

•

Elimination of over head cranes for loading and unloading.

•

Low liquor ratio of 1:5 to 1:7 as per package density.

•

High flow rate due to axial flow pump design with inbuilt flow direction reversal system.

•

Perfect dyeing uniformity can be obtained even in large diameter package.

Applications

•	Yarn Packages.
•	Small Width Fabrics.
•	Zipper Tapes.
•	Muffs & Tops.

Standard Configuration (applicable To All Dyeing Machines)

•	All machines are available in semi-automatic & Automatic version.
•	All Machines are made from corrosion resistant stainless steel grade AISI-316 SS.
•	Pressure extraction system.
•	Package outer diameter 190 mm.
•	Die spring inside diameter 57 mm x 170 mm length.
•	Package weight depends on type of yarn.
•	Polyester FDY package weight will be approx. 1.5 kgs at package density 0.4 gms/cm³.
•	Cotton package weight will be approx. 1 kgs at package density 0.27 gms/cm³ .
•	Operating temperature 140°c maximum.
•	Operating pressure 4 kg / cm² maximum.
