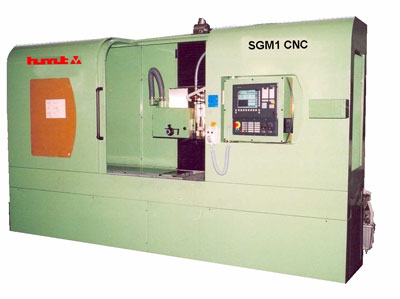

Box type construction with ample ribbing for high rigidity.Three linear axes (X, Y, and Z). Linear motion antifriction guideways for Y and Z axis. Turcite coated Vee and flat guideways for X axis.Axes drive through precision ballscrew and nut driven by AC servomotors.Wheel spindle mounted on high precision bearing lubricated for life.Incremental rotary encoder for position feedback of X & Z axis.Linear encoder for position feedback of Y axis.Continuous lubrication of table with independent power pack.Centralised lubrication for Y & Z axes guideways and ball nuts.Ideally suited for flat and profile grinding with suitable dressing attachments & fixtures.
| SGM1 | SGM2 | |||
| Table clamping area (LxW) | mm | 1500x320 | 600x400 | |
| Grinding range (LxW) | mm | 1250x320 | 1250x400 | |
| Distance from table to spindle center | mm | Min 125 Max 600 | Min 125 Max 600 | |
| Stroke - X / Y / Z | mm | 1450/425/480 | 1450/800/480 | |
| Rapid traverse - X / Y / Z | m/min | 25/1/3.5 | 30/2/4 | |
| Continuous feed rate - Z | m/min | Programmable | Programmable | |
| Minimum programmable increment | mm | 0.0001 | 0.0001 | |
| Grinding wheel spindle motor | kW | 8.5 at S6 60% | 8.5 at S6 60% | |
| Grinding wheel - Dia x Bore x Width | mm | 400x127x80 | 400x127x80 | |
| Grinding wheel speed (inf. Variable) | rpm | 1450-2450 | 1450-2450 | |
| Control system | Siemens/Fanuc | Siemens/Fanuc | ||
