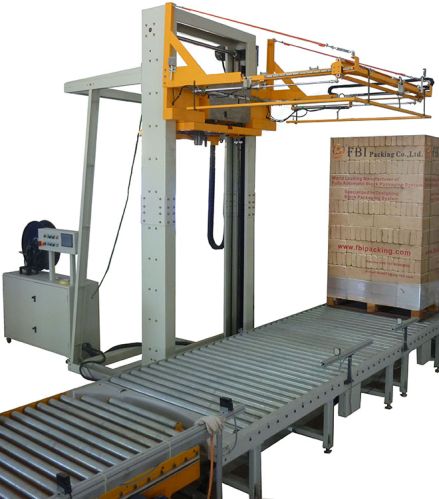

Horizontal Strapping Machine

We are offering horizontal strapping machinem,
machine dimensions(mm)l * w * h+weight: 1700 * 2655 * 3930+1000kg
standard arch dimensions(mm)w*h: 1450*1600(can be customized)
standard package dimensions(mm)l*w*h: (1000-1200)*(1000-1200)*(800-2000)
conveyor height: min. 300mm
standard shift motion: 250mm(can be customized)
pppet strap dimensions: strap width:12,15,19mm
strap tension: max. 700n(adjustable)
lifting speed: 1-16mmin(adjustable)
strapping speed: 22sper strap
operate mode(with touch screen): manual +auto(easy to install to fully automatic packing system)
plc control system: suitable to install to fully automatic packaging production line.
Auto-caution when strap is not feed to the right position.: both available for pp and pet straps
programmable strapping patterns: auto-alarm when abnormal condition emerge
customized non-standard design: all steel structure,sturdy supporting frame.
awith arch collision detection,auto-stop when collide.
abnormal detection:strap shortage detectionstrapping failure detection
using combine with vs-100 or vt-100,the safety of goods on pallet will be 100% guaranteed.
power 220380v. 5060hz. 3 phase. 2kw.
