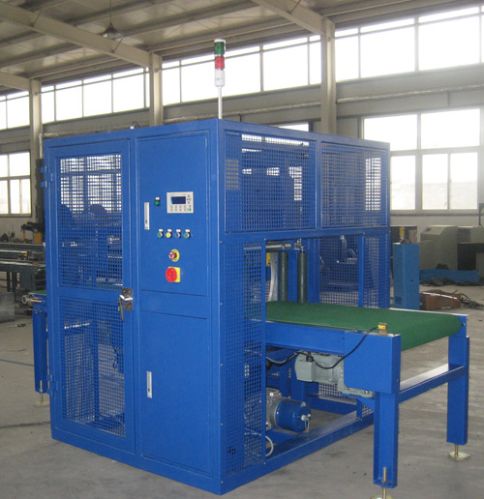

Horizontal Stretch Wrapping Machine

We are offering horizontal stretch wrapping machine.
This series machines are suited to wrapping long lengths of product such as pvc and aluminium extrusions, timber sections and other collations. The film holds multiple products tightly together to prevent damage caused by vibration during transport.
Specification
size of the product to be wrapped
min load size(section wxh) 200 x200 mmã��ã�â
max load size(lxwxh) 300 x 300 (tailor-made according your size)
min length 1000mm
film carriage
carriage brake film head
film tension adjustable
machine specification
ring inner diameter: 600mm
ring rotation speed 45rpm
ring drive nylon wheels and aluminum ring
power supply voltage 380 volt 3 ph - 60 hz
stretch film roll detail
max. External diameter (d): 230 mm
internal diameter (d): 76 mm
film roll height (h): 250 mm
film thickness: ã��ã�â  17-35 ã��ã�âµm
features:ã��ã�â
ã�â¯ã¯â¿â½ã�â·advanced siemens plc control and 7ã�â¢ã¯â¿â½ã¯â¿â½ã�â¢ã¯â¿â½ã¯â¿â½ touch screen
ã�â¯ã¯â¿â½ã�â·easy to set parameters via panel as following:
ã��ã�â  both end wrap times, conveyor speed , ring speed etcã��ã�â
ã�â¯ã¯â¿â½ã�â·automatic clamping, cutting film system
ã�â¯ã¯â¿â½ã�â·automatic wrapping program selection
- ã�â¯ã¯â¿â½ã�â·photoeye auto sensing product front edge and start the front wraps
- ã�â¯ã¯â¿â½ã�â·photoeye auto sensing product end edge and start the end wraps
option
bigger ring diameter
increase wrap section for your loads
automatic top clamp
ensure the safety for combined or light product
automatic side clamp
ensure the safety for combined or light product
