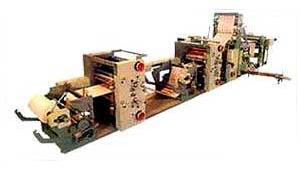

Horizontal Web Offset Press

MaterialMetal
PurityReliable and Durable
ApplicationIndustrial
Number Of FlowerHorizontal Web Offset Press
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

sud & waren is a trusted name for the world class horizontal web offset presses for different configurations from single colour to 4 colour on one side or back to back the sizes available are most....

View More Details

Send Enquiry

Product Details

sud & waren is a trusted name for the world class horizontal web offset presses for different configurations from single colour to 4 colour on one side or back to back the sizes available are most suitable for various state and central govt. Departments. Railways and road transport corporations. All the machines are made of wear resistance spares manufactured under vigilant quality control- for their long life and strength. Our in house manufacturing facilities ensure quality and higher performance. Machines are available with following standard and optional features :- features :

ink roller washing devices
motorised dampening with ss fountain roller
centralized and forced lubrication
dust suction device
motorised reel loading system
plate bending fixture
alarm before start
web break detector
motorised registration system from operator’s desk for lateral & circumferential direction

optional features :

roll to roll
numbering unit
pneumatic system for inking, dampening and impression
air expanding shaft
magnetic particle brake
web guide system
motorised lateral registration

Technical Specifications

Web Width	620 mm 610, 860 mm.
Cut off length	440 mm 430,610 mm.
Unwind reel diameter	1000 mm
Print format	600 x 425 mm
Size of printing plate	620 x 479 mm
Size of Rubber Blanket	633 x 493 mm
Printing unit	Upto 4 Nos
Number of paper web	1 or 2
Paper specifications	50-140 gsm
Plate thickness (with pack)	0.3 mm
Blanket thickness (with pack)	2 mm
Unwind core I.D.	70-76 mm
Printing output speed(per hour)
Roll to sheet	20,000
Roll to two fold	30,000
Roll to three fold	25,000
Electric power	440 V AC ( 50 Hz )
Maximum power load	20 HP (2 units) 30 HP (3 units) 40 HP (4 units)
Approximate Machine Dimensions	(4 printing units)
Overall length	12 meter
Overall width	4 meter
Overall height	2.6 meter
Weight of the machine.	15,000 Kgs
