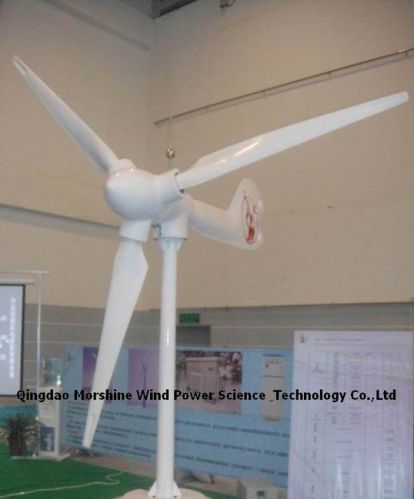

Contact SupplierWe offer home horizontal axis 3kw wind generator system
this wind turbine with pitch control systems, ce/iso certification
introduction:
rated power(w): 3000
blades material: frp/3
rated wind speed(m/s): 8
speed regulation: variable pitch & brake system
startup wind speed(m/s): 2
generator type: three-phase ac pm
working speed(m/s): 2.5~25
tower height (m): 8m(optional)
survival wind(m/s): 45
shut down method: hand/electric winch
rated rpm(r/min): 260
turbine main body weight (kg): 215
blade diameter (m): 5
working voltage (v): dc192v/96v
power supply method: three-phase whole-wave bridge rectifier constant dc charger
battery bank(optional): [12v. 100ah]&16.
