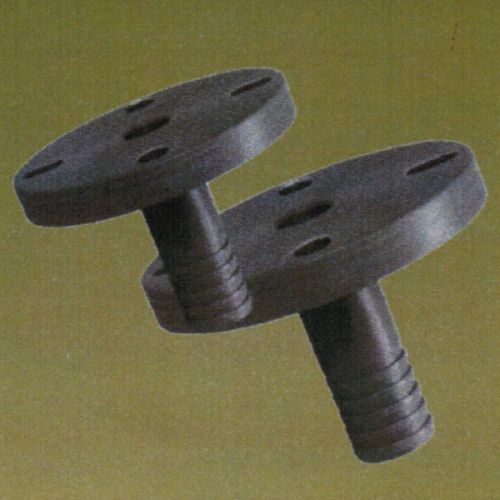

Hose Collar

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Our company is a well-known Manufacturer, Supplier and Exporter of Hose Collar from Vadodara, Gujarat. Our company offers Hose Collar at the best prices in the market. We are appreciated in the market as we offer Hose Collar only after maximum quality assurance. The company makes available Hose Collar in different sizes and specifications.

View More Details

Send Enquiry

Available Sizes

Size (In)	Size (Mm)	ØD	ØD1	ØD2	T	T1	T2
1 x 3 / 4	32 x 25	129	13.5	21.5	126	19	44
1 x 1	32 x 32	130	19	27	125	21	51
1.1/2 x 1	50 x 32	140	19	26	135	20	50
1.1/2 x 1.1/4	50 x 40	140	22	33	135	21	55
1.1/2 x 1.1/2	50 x 50	140	17.5	40	135	18	50
2 x 1	63 x 50	162	35.5	51.5	120	22	57
3 x 1.1/2	90 x 50	198	27	39	148	25	55
3 x 2	90 x 63	198	34	52	134	25	55
3 x 3	90 x 90	198	53	75	138	25	55
4 x 2	110 x 63	226	35	51	140	25	50
4 x 3	110 x 90	226	60	76	140	25	50
4 x 4	110 x 100	226	81.5	101	140	25	50
Flange dRilled Ansi B 16.5 (150 Class) : BS 10 Table D BS 10 Table E BS 10 Table F Din. Std Note : All Dimensions In mm Flange Drilled
