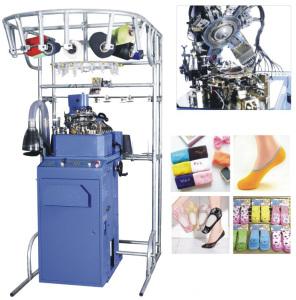

Hosiery Sock Knitting Machine

Product name: Single-Cylinder 2-Feed Hosiery Sock Knitting Machine
HY-6F-4002
Single-cylinder 2-feed machine, drumless, for the manufacturing of high quality socks and tights with true heels in transfer stitch & multicolor patterns in a wide range of gauges.
DescriptionFeatures:
1.One feed for main yarn, four colors for patterns
2.Double Cylinder imitation design
3.Two Feeders for main yarn, making cross patterns.
4.Five colors in one course, 10colors in the sock pattern
5.High heel, big heel, small heel, 180 degree against sock mouth, two colors for sock heels & sock toes
6.Possibility of three-dimensional patterns, Invisible socks and special link socks
7.Back-up battery can save the storage program
8.UPS device support the continuous knitting
9.Double down picker for gradual narrowing, thus reducing the torque and improving the production; fit for making the 3D socks.
Specification:
1.Diameter: 4.0 inch
2.Needles: 84-168N
3.Speed: 280-300 RPMmin
4.300 RPMmin for plain; 280 RPMmin for terry
5.Power: Drive Motor: 1KW; Fan Motor: 0.75 kw; Control Box: 0.8kw
6.Net Weight: 300KG Gross Weight: 350KG
7.Output: 250-300 Pairs Day
8.Packing: 76cmx110cmx165cm 1.38CBM
Application:
1.Possibility of three-dimensional patterns, Invisible socks and special link socks
2.High heel, big heel, small heel, 180 degree against sock mouth, two colors for sock heels & sock toe
3.Naked spandex
4.Y-heel
5.Tube sock
6.plain ,rib , mesh, stitch cams, elastic jacquard, multi-level rib top, foot sole reinforcement, around patterned socks etc,
7.Tight - Automatic Stitch Control
8.Three Dimensional design in elastic part, leg and foot
9.Double welt folding socks
