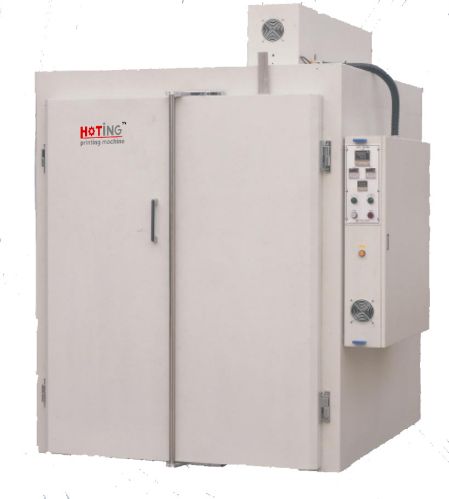

Hot Air Circulation Drying Oven, Brand Name : Hoting

Application scope:
This series is suitable for circuit board, plastics, ceramic decals, metal signs etc drying.
Specification:
1. Stainless material prevents internal corrosion and allows long durability
2. PID temperature control allows constant temperature distribution
3. Side-to-side circulation of hot air maintains constant temperature distribution in the vertical direction
4. Has a filter mounted at the air inlet
5. Temperature display function (high, medium and low)
Advantage:
1) All the die-casting components are produced by us, so this save much cost.
2) Total 10 sets products in stock at any time, ensure the delivery time.
3) Engineers can design the full automatic work line depend on the products that you want print, let everything is automatic. So you can save labor force.
4) Plywood package, ensure the long distance transport and prevent broking the products.
5) The main feature of our machine: Stable quality, operate easily, low noise, reasonable price.
Parameter:
Model
DRA-1
DRA-2
Max temperature
180°C
Temperature control
P.I.D Control by SCR
Power
220(380)V X 3ph X 18 ~ 20W
Circulation fan
1Hp X 1EA
1Hp X 2EA
Outside(W X D X H)
1550 X 1400 X 2350mm
1820 X 1960 X 2350mm
Inside (W X D X H)
900 X 1100 X 1600mm
1200 X 1650 X 1600mm
Weight
Approx.700kg
Approx.900kg
★ Special specification can be made to order.
