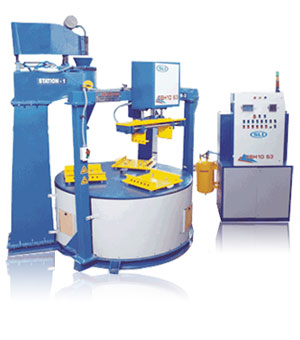

Hot Box Core Shooters

CORE WEIGHT (KGS)3
CORE BOX SIZE (L*W*H) MM200x200x100
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

These Core Shooters can shoot in volumes of 5 to 20 kgs. The average machine cycle time is from 10 second onwards without gassing, shoot and exhaust. The clamping can be done by either hydraulic or pneumatic method. The opening, shooting and gassing are simultaneously done on three core boxes. The core boxes can be parted horizontally. While the unit requires a power input of 3.7 kW, the entire functions are managed by a Programmable Logic Controller.

View More Details

Send Enquiry

Company Information

Selvalakshmi Industries

Chinnavedampatti, Coimbatore, Tamil Nadu

View Number

Member Since 14 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MODEL	SLI 3S3C	SLI3S5C	SLIS310C	SLI3S 25C
CORE BOX SIZE (LWH) MM	200x200x100	350x350x125	450x450x150	500x500x150
TABLE DIA (MM)	700	900	1100	1300
CORE WEIGHT (KGS)	3	5	10	25
MACHINE SIZE (LWH)	1.5x1.5x2	1.5x1.5x2	2x2x2.5	2.5x2.5x2.5
MACHINE WEIGHT (TONS)	2.5	2.5	3	4
SHOOTING HEAD AREA SIZE (L*W) MM	100x100	100x100	125x125	150x150
VERTICAL CLAMPING STROKE (MM)	100	100	100	100
SHOOTING HEAD & GAS HEAD HIGHT ADJUSTMENT (MM)	200	200	200	200
CLAMPING	PNU	PNU	HYD	HYD
CLAMP UNIT STROKE FOR CORE REMOVEING (MM)	300	300	400	500
CYCLE TIME PER/CORE(WITHOUT GAS,PURGE, SHOOTING,SAND FEEDING & CORE REMOVING) (SEC)	15	20	40	60
SAND FEEDING HOPPER TO SAND MAG	AUTO	AUTO	AUTO	AUTO
AIR CONSUMPTION PER/CORE (CFM)	10	10	15	20

ELECTRICAL DETAILS :

MODEL	SLI 3S3C	SLI3S5C	SLIS310C	SLI3S 25C
INPUT POWER	3Phase 415/50Hz	3Phase 415/50Hz	3Phase 415/50Hz	3Phase 415/50Hz
HYDRAULIC MOTOR (HP)	2	3	5	7.5
VIBRATOR MOTOR (HP/RPM)	0.25/2800	0.25/2800	0.5/2800	1/2800
BLOWER (HP/RPM)	0.5/2800	0.5/2800	1/2800	1/2800
HEATER (KW)	1	1	2	2

ROTARY 3 STATION HOTBOX CORE SHOOTER (HORIZONTAL) :

MODEL	SLI 3S3C	SLI3S5C	SLIS310C	SLI3S 25C
CORE BOX SIZE (LWH) MM	200x200x100	350x350x125	450x450x150	500x500x150
TABLE DIA (MM)	700	900	1100	1300
CORE WEIGHT (KGS)	3	5	10	25
MACHINE SIZE (LWH)	1.5x1.5x2	1.5x1.5x2	2x2x2.5	2.5x2.5x2.5
MACHINE WEIGHT (TONS)	2.5	2.5	3	4
SHOOTING HEAD AREA SIZE (L*W) MM	100x100	100x100	125x125	150x150
VERTICAL CLAMPING STROKE (MM)	100	100	100	100
SHOOTING HEAD & GAS HEAD HIGHT ADJUSTMENT (MM)	200	200	200	200
CLAMPING	PNU	PNU	HYD	HYD
CLAMP UNIT STROKE FOR CORE REMOVEING (MM)	300	300	400	500
CYCLE TIME PER/CORE(WITHOUT GAS,PURGE, SHOOTING,SAND FEEDING & CORE REMOVING) (SEC)	15	20	40	60
SAND FEEDING HOPPER TO SAND MAG	AUTO	AUTO	AUTO	AUTO
AIR CONSUMPTION PER/CORE (CFM)	10	10	15	20
