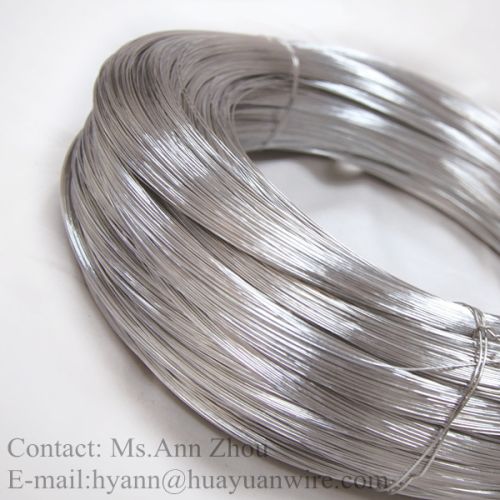

Hot Dip Galvanized Iron Wire, Brand Name : HUA YUAN

We are offering hot dip galvanized iron wire,
hot-dip galvanized iron wire
(1) quality : meet gbt 343 standard and other requirements of relevant standards .
　(2) zinc coating: meet gbt 15393 standard and other requirements of relevant standards .
　(3) raw material : wire rod ——1006 , 1008 , 1018 , q195 , etc, and zinc with 99.995% purity.
　(4) tensile strength range
size (mm) tensile strength (mpa)
0.15-1.60 290-550
0.65-1.60 400-550
1.61-6.00 400-1200
　(5) application : used in wire mesh , artware , metal hose , binding for agriculture and construction , etc.
　(6) packing
size (mm) coil size spool packing big coil packing
id (mm) od (mm)
0.15-0.26 6 inch 1-14kgspool
0.27-0.60 8 inch 1-100kgspool
0.61-1.60 121416 inch 1-100kgspool 250-400 400-770
1.61-6.00 14-500kgspool 450 800
508 840
　
　(7) zinc coating
　meet gbt 15393 standard
size (mm) weight of zinc-coating ( gm2 )
a ab b c d e f
a1 b2
=0.25-0.40 30 25 20
>0.40-0.50 30 20
>0.50-0.60 35 20
>0.60-0.80 120 110 40 20
>0.80-1.00 150 130 45 25
>1.00-1.20 180 150 50 25
>1.20-1.40 200 160 50 25
>1.40-1.60 220 180 50 35 30
>1.60-1.80 220 180 70 40 30
>1.80-2.20 230 200 80 50 40
>2.20-2.50 240 210 80 55 40
>2.50-3.00 250 230 90 70 45
>3.00-4.00 270 250 100 85 60 30
>4.00-5.20 290 270 110 95 70 40
>5.20-6.00 290 270 245 110 100 80 50.
