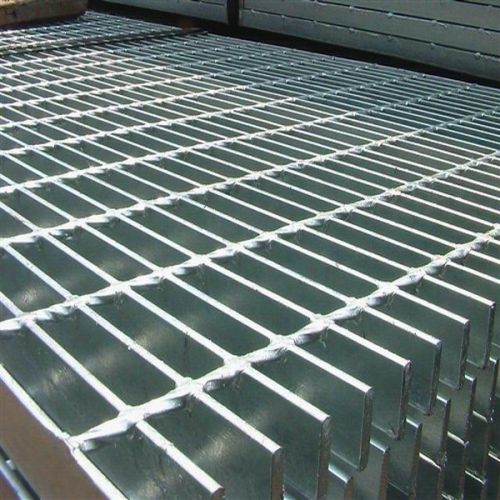

Hot Dip Galvanized Steel Grating, Brand Name : CNDIMA

We are offering hot dip galvanized steel grating.
specifications(mm):\r\r the specifications of plain type and serrated type bearing bar is 20×3 to \r\r100×6\r\r the specifications of i-type is 25×5×3, 32×5×3, 38×5×3, 40×5×3, \r\r50×5×3,50×7×4, \r\r 55×7×4, 60 ×7×4, 65×7×4, 70×7×4, 75×7×4\r\r\r(2) bear bar pitch(center to center)\r\r 30, 34, 40, 60mm etc, also we can produce it as per customers \r\rrequirements. And 30,40,60mm are recommended. Americans standard available.\r\r(3) cross bar pitch(center to center)\r\r 38,50,76,100mm etc, also can be produced as per customers requirements. \r\rand 50, 100mm are recommended. Americans standard available.\r\r(4) material: mild steel(low carbon steel ) or stainless steel \r\rgb700-88,gb1220-92\r\r(5) surface treatment: untreated, painting or hot-dipped galvanization.\r\rrelated products:\r\r steel bar grating, mild steel grating, stainless steel grating, galvanized \r\rsteel grating\r\rfeature and use: welded steel bar grating is the most popular of all grating types due to its strength, cost-efficient production and easy of installation. Universally used in most general industrial plants as well as commercial buildings, it has wide applications as walkways, platforms, safety barriers, drainage covers and ventilation grates.
