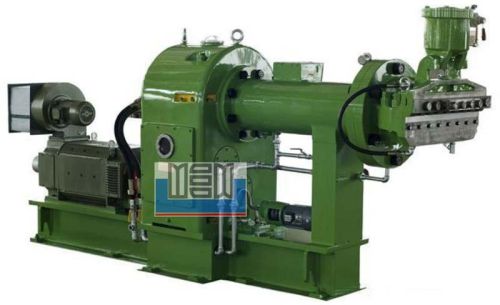

Hot Feeding Rubber Extruder

₹ 4.50 Lakh - ₹ 17.10 Lakh / Set

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All Countries Except India

We are the China-based Manufacturer, Supplier and Exporter offering top-class Hot Feeding Rubber Extruder internationally at marginal prices. The sturdy Hot Feeding Rubber Extruder provided by us is....

Company Information

Member Since 10 Years
Nature of Business Manufacturer
Year of Establishment 1996

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

We are the China-based Manufacturer, Supplier and Exporter offering top-class Hot Feeding Rubber Extruder internationally at marginal prices. The sturdy Hot Feeding Rubber Extruder provided by us is at par with the set industry standards. We can make available their Constant Speed or Variable speed drive as per specific requirement of the clients. Moreover, we are well equipped to cater to bulk orders.

Application : The machine is used for the extrusion of half-finished rubber products such as tire tread, inner tube, rim band and rubber tube etc.

Features :

The machine is equipped with extruding head of inner tube or tire tread and other dies as required by users.
Machine body temperature measuring and indicating device is installed. The feeding zone over dia of150mm is equipped with side rolls for addition of feeding capacity. -The screws and bushes are subjected to nitrogenation treatment to get enough strength and wear âï¿½ï¿½resistance.
The reducer has a forced lubrication unit which is featured by high transmission efficiency, long service life and low noise.
The machines over model sj-150 is driven by a variable speed motor. The side rolls are designed as side-open type for easy to rubber cleaning.

Technical Specifications

MODEL	XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
DIA. OF SCREW(mm)	65	85	115	150	200	250
L/D	4	4.8	4.8	4.4	4.4	4.5
SPEED OF SCREW(r/min)	20.27 35.47	27.40 53.72	2060	2781	22.467.2	19.759.1
STEAM PRESSURE(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
COOLING WATER PRESSURE(Mpa)	0.2	0.2	0.2	0.2	0.2	0.2
MOTOR POWERkw	7.5	17	30	15.355	33.3100	33.3100
OVERALL DIMENSION(L×W×H)mm	1600×675×1053	2050×735×1275	2770×665×1300	3585×814×1470	4549×1140×1750	4950×1150×1483
CAPACITYkg/h)	5080	62270	100350	800	15002200	3500
WEIGHT	1.5	2.6	3.8	4.5	7.21	9
