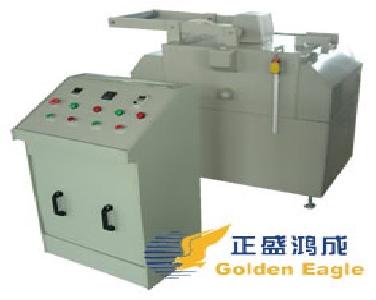

Hot Foil Stamping Die Etching Machine

We offer hot foil stamping die etching machine.
technical parameters:
model number: tb3040 tb4050
etching size: 300*400mm 400*500mm
tank volume: 40l 60l
etching temperature: 23 to 28℃
power: 5.5kw/380v
control system:
speed adjust system, etching times control system, etching pressure adjust system, etching temperature adjust system, network filter system
features:
1.this cutting die etching machine used rotating and angle-swing structure in its two parts. It can produce wonderful effect products with high etching precision.
2.it is easy to operate and has a stable property.
3.it can processing the workpieces just as copper, zinc , magnesium plate
4.the machine is made of pp plate, which is heat-resistant, corrosion-resistant and strain-resistant.
5.timely service, one year warranty, life-long maintenance
6.provide free training for customers in any places.
7.non-standard sizes can be customized according to different business requirements
working principle:
put the metal plate fixed on the turntable, start the unit, the turntable begin to rotate, at the same time the corrosive liquid was lifted off by spindle spin shaft of leaves in the case, then the non-protected parts were etched away by vertical pressure of corrosive liquid time and time again, so the patterns was presented good effection on the metal surface.
applications:
this stamping-dies etching machine is special for stamping mold or hot stamping die. It can processing copperplate, zinc, stencil-plate, printing plate and so on.
