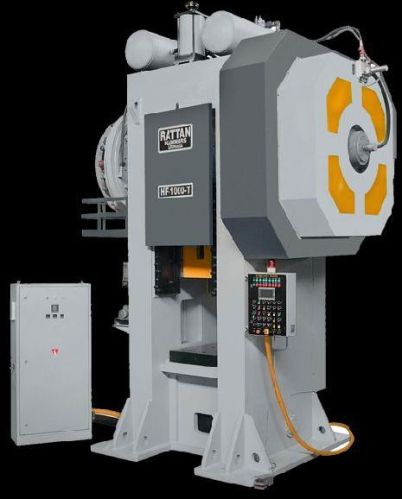

Hot Forging Press Machine

Listing ID #4179776

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

SPECIFICATION OF HOT FORGING PRESS MACHINE Model UNITS RHF - 400 RHF - 600 RHF - 750 RHF - 1000 RHF - 1350 RHF - 1600 CAPACITY Tons 400 600 750 1000 1350 1600 Tonnage Rating....

View More Details

Send Enquiry

Product Details

SPECIFICATION OF HOT FORGING PRESS MACHINE

Model	UNITS	RHF - 400	RHF - 600	RHF - 750	RHF - 1000	RHF - 1350	RHF - 1600
CAPACITY	Tons	400	600	750	1000	1350	1600
Tonnage Rating Point	MM	2	3	3	3	4	5
Stroke Length	Mm	160	170	180	250	280	300
Stroke Per Minute	S.P.M	110	105	100	95	90	90
Die Height	MM	530	560	540	700	720	720
Adjustment Of Slide	MM	6	6	8	10	10	10
Bolster Area (LR X FB)	MM	600x700	680x780	730x890	920x1050	950x1250	1000x1270
Slide Area (LR X FB)	MM	580x600	650x670	720x780	880x900	900x960	970x1000
Side Opening (W XH)	MM	320x520	360x580	400x600	460x600	460x680	560x720
Main Motor	Kw/Hp	22/30	37/50	45/60	55/75	75/100	90/120
Adjustment Motor	Kwxp	0.5	0.75	1.5	1.5	1.75	1.75
Air Pressure	Kg./Cm2	5.5	5.5	5.5	5.5	5.5	5.5
Upper Ejector Type	MECH.	MECH.	MECH.	MECH.	MECH.	MECH.	MECH.
1. Capacity	TON	1	1	2	3	5	5
2. Stroke	MM.	15	20	30	40	50	50
3. Pin Dia	MM.	40	50	50	50	55	60
Lower Ejector Type	AIR	AIR	AIR	AIR	AIR	AIR	AIR
1. Capacity	TONN	1.5	2	4	5	6	10
2. Stroke	MM.	40	40	40	50	50	50
3. Pin Dia	MM.	40	50	50	50	50	50

Company Details

Rattan Hammers is India's largest Manufacturer & exporter of "Rattan" Friction Drop Hammers, Hot Forging Press, Roll Forging Reducers, Bar Cropping/Shearing Machines, Trimming Power Press, Shot Blasting Machine (Table Type & Tumble Type). We are pioneer in the field of designing and manufacturing of heavy duty machinery like Forging Hammers from 300 kgs to 3500 Kgs, Hot Forging press (400 to 1350 tons), Bar Cropping machine ( in 50, 75, 100 mm), Shot Blasting Machine, Trimming Press (upto 800 tons), Roll Forging Reducers( in 32, 45, 60 mm ). The market success of our products under trade name of Rattan through out the Indian & overseas market, is testimony of the group in the field of forging machinery.
"Rattan" Hammers has significant contribution to forging industry machinery and it will further increase as soon as its HEAVY DUTY HOT FORGING PRESS with 2500 Ton Capacitybased on latest technology will be offered very shortly. Our most modern unit is fully equipped with foundry for quality casting up to 75 tons weight-per peace, Heavy duty Plano-millers, Floor Boring machine, VTL's, Milling Machines, Radial Drill, Heavy Duty lathes, CNC Lathes, E.O.T. Cranes up to 75 tons capacity and a team of qualified Engineers & Technicians. Beside state of the art Infrastructure we have AutoCAD Design facility with all the latest testing Equipments.
Rattan Hammers Forging machines are guaranteed for one year against any manufacturing defect and are served with prompt after sales service. We are highly thankful to our valued customers for their co-operation so far and further assure to offer them most economical and productive forging equipments in future.
Friction drop hammers are most suitable for Precision Forging Automobile, Railways, Scaffoldings, Defence, Aeronautics, Hand Tools, Agriculture, Bicycle and other Engineering Industries. These are basically designed to better productivity, economy and longer durability. More stress has been given in order to achieve the above results.
We are highly thankful to our valued customers for their co-operation so far and further assure to offer them most economical and productive forging equipments in future.
