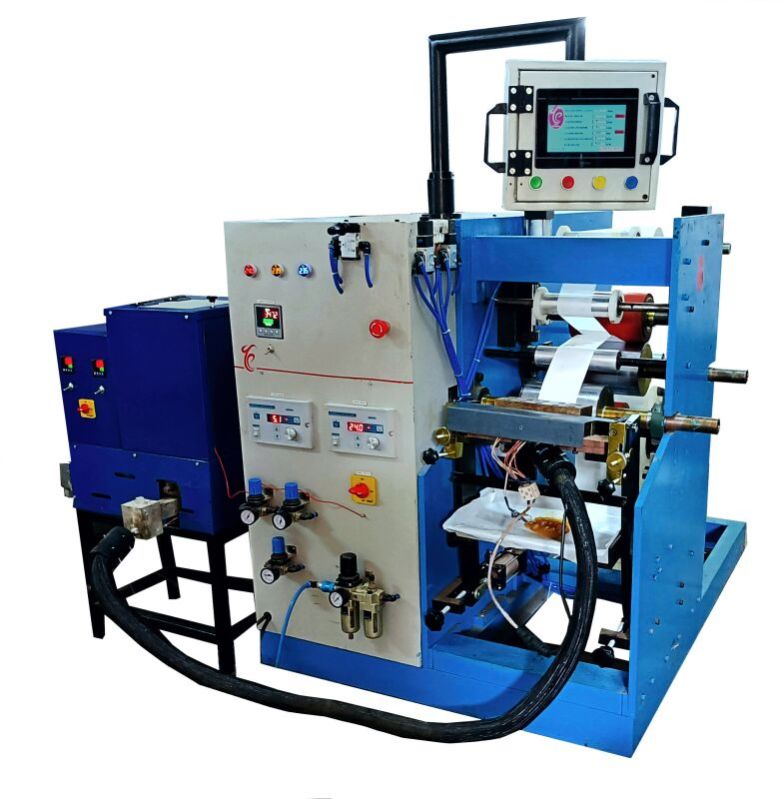

Hot Melt Coater Specification: Model HMC 6
Machine Type: Die Coating
Max. Size of coating : 150mm, GSM: 20 to 80, Max.
Speed of coating : Speed 15 mpm. Till 40mm tape you can run at 15 mpm. @ 40 GSM.
Bigger sizes or Higher GSM will be proportionally less speed. Eg. 100 mm will run at 10 mpm.
Synchronized coating thickness with speed.
Automatic coating with PLC and Touch Screen.
1. Unwind:2 Stations
To hold 150 mm width of
Silicon paper / Tape Cloth rolls.
76 MM core ID.
Powder Brake
2. Coating Station:
Slot Die coating,
Accurate Temp. Control.
All silicon rolls dynamic balanced.
Back up roller Pneumatically operated.
AC Drive for coating roller.
3. Lamination Nip:
Dynamic balanced Metal roll, Silicone roll
Operation & pressure Pneumatic
AC Drive to the nip
4. Rewind:
To hold max. 150 mm width material.
300 mm Dia. Max.
76 MM core ID.
Taper tension-controlled winding.
AC Drive for controlled winding.
5. Permelter:
Tank capacity 5 Lit.
Melting Capacity 5 Lit/hr
Dry tank capacity: 5 Lit.
liquid tank capacity 0.5 Lit.
Pump Capacity 0.5 Lit/Min
Accurate Temp. Control.
6. Hot melt Hose
To Supply 5 Kgs/hr
Length 2 m
Accurate Temp. Control.
DIMENTIONS: 6’X 4’X 4’
Total Electrical Load: Motors 3 HP + Heaters 6 KW
