Hot Press Veneer Drying Machine

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

We are offering 12 layers hot press veneer drying machine. Model by214×8/1-12z nominal gross pressure 1000kn direction of feeding plate horizontal layer counting 12....

View More Details

Send Enquiry

Company Information

Linyi Metroco Machinery Co. Ltd

Linyi

View Number

Member Since 13 Years
Nature of Business Manufacturer
Year of Establishment 1992

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

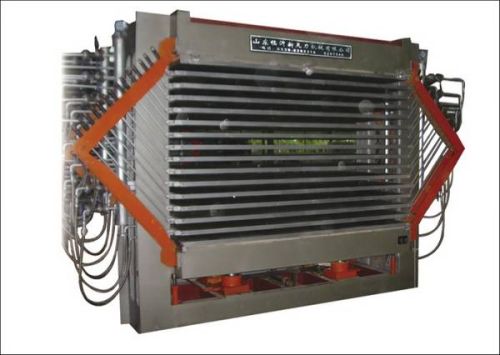

We are offering 12 layers hot press veneer drying machine. Model by214×8/1-12z
nominal gross pressure 1000kn
direction of feeding plate horizontal
layer counting 12 layers
distance between hot platens 70 mm
numbers of hot platens 13 pcs
platen material solid drilled platen
size of hot platens 2700×1340×42mm
numbers of cylinders 4 pcs
we are offering drying machine. Diameter of cylinder φ140 mm
stroke of cylinder 840 mm
pressurization 6.3mpa
empty closing time 15 s
flowing speed of low pressure pump about 140 l/min
power 11 kw
machine weight about 24,500 kg
